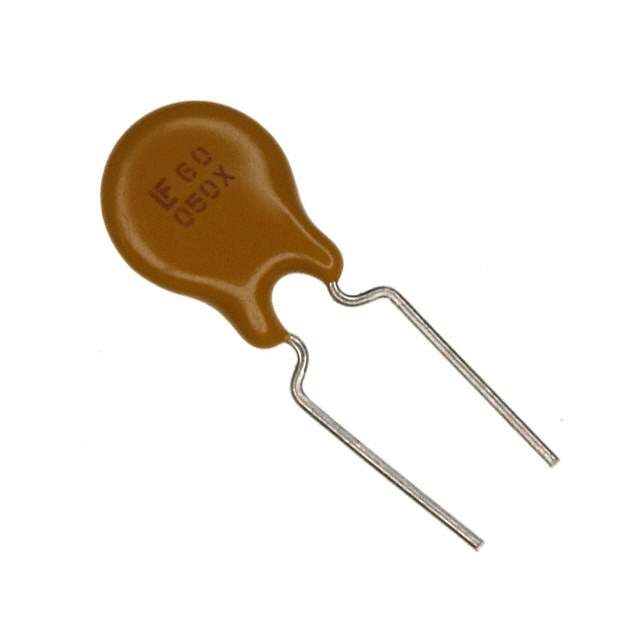

60R050XU Real Image
Same model may have multiple batches, images only for reference.

60R050XU

Part No 60R050XU
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 500MA RADIAL / Polymeric PTC Resettable Fuse 60V 500 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 60R
Package Bulk
Type Polymeric
Voltage - Max 60V
Current - Max 40 A
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Time to Trip 4 s
Resistance - Initial (Ri) (Min) 500 mOhms
Resistance - Post Trip (R1) (Max) 1.17 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Max) 0.539" (13.70mm)
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names 60R050,060R0050U,060R0050,F2006,-1024-60R050XU
Standard Package 500
Win Source Part Number 1039549-60R050XU
Ultra Librarian 3D Model Ultra Librarian 60R050XU CAD Model

Description

The Littelfuse Inc. 60R050XU is a PTC resettable fuse that is commonly used in various electronic circuits.

  • Type: PTC Resettable Fuse
  • Maximum Voltage Rating: 60V
  • Maximum Current Rating: 40A
  • Current Hold: 500mA
  • Current Trip: 1A
  • Time to Trip: 4s
  • Package: Radial, Disc
  • Height: 0.539" (13.70mm)
  • Lead Spacing: 0.201" (5.10mm)
