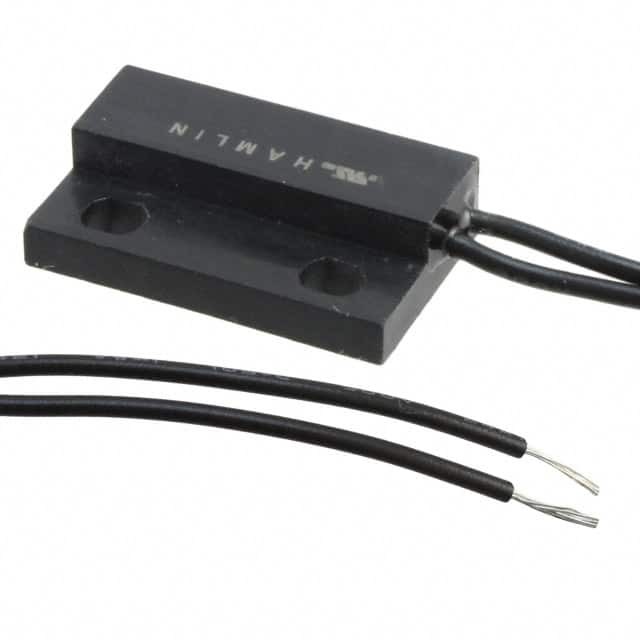

59140-010
Same model may have multiple batches, images only for reference.

59140-010

Part No 59140-010
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
59140-010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Littelfuse Inc.
Series 59140
Package Bulk
Product Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 4.44mm
Must Release 20.32mm
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case Flange Mount
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 907524-59140-010
Ultra Librarian 3D Model Ultra Librarian 59140-010 CAD Model

Description

The 59140 series magnetic sensor from Littelfuse Inc. is a versatile component for position, proximity, and speed detection applications.

  • Sensor Type: Reed switch
  • Connectivity: Wire leads
  • Operating Temperature Range: -40°C to 105°C
  • Output Type: SPST-NO
  • Must Operate Distance: 4.44mm
  • Must Release Distance: 20.32mm
  • Mounting: Flange mount
  • REACH: Unaffected
  • ECCN: EAR99
  • Package: Bulk
  • Quantity: 100 pcs
  • Compliance: California Prop 65
  • Status: Active
