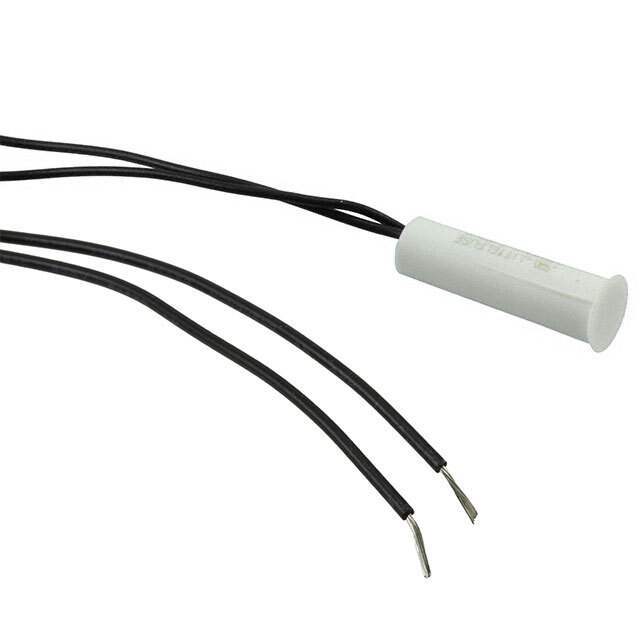

59040-1-S-02-A Littelfuse Inc. 59040-1-S-02-A Littelfuse Inc.
Same model may have multiple batches, images only for reference.
59040-1-S-02-A Littelfuse Inc. 59040-1-S-02-A Littelfuse Inc.
59040-1-S-02-A Littelfuse Inc. 59040-1-S-02-A Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59040-1-S-02-A

Part No 59040-1-S-02-A
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
59040-1-S-02-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Box
Part Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 25.00mm
Operating Temperature -40°C ~ 105°C
Package / Case Press Fit
Ultra Librarian 3D Model Ultra Librarian 59040-1-S-02-A CAD Model

Description

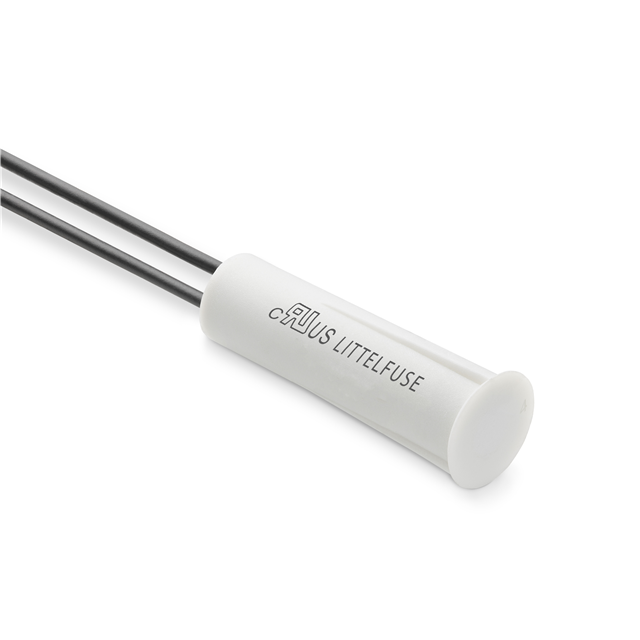

The 59040 Press-Fit Reed Sensor is a small, cylindrical reed sensor 31.0 mm (1.22”) long that presses into a 9.5 mm (.375”) diameter hole with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 200 Vdc at 10 W Contact rating. Extensive range of sensitivity with specified cable length is available. The housing color is white. It has three crush ribs along the length of the capsule that allow a firm and fixed press-fit.
