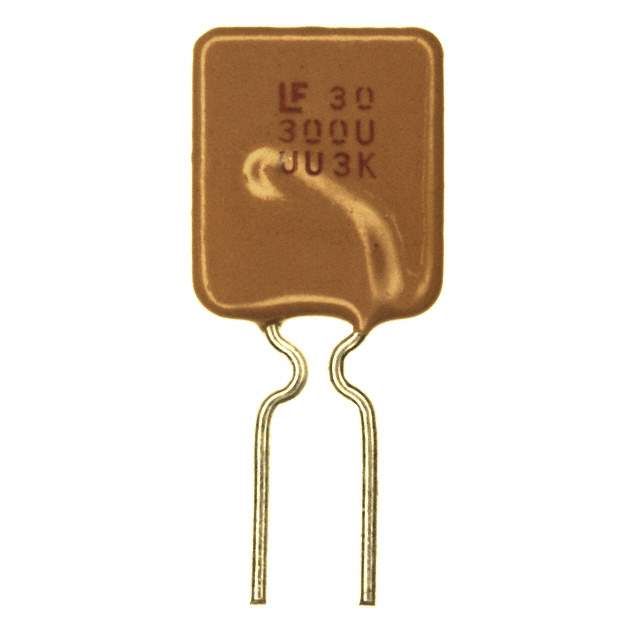

30R300UPR Real Image 30R300UPR label picture
30R300UPR Real Image 30R300UPR label picture
Same model may have multiple batches, images only for reference.

30R300UPR

Part No 30R300UPR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 3A RADIAL / POLYFUSE Resettable PTCs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tape & Box (TB)
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Maximum) 3A
Current - Trip (It) 6A
Time to Trip 10.8s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Maximum) 80 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Maximum) 0.756" (19.20mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800799-30R300UPR
Ultra Librarian 3D Model Ultra Librarian 30R300UPR CAD Model

Description

The Littelfuse Inc. Polymeric fuse is a high-quality product designed for through-hole mounting.

  • Voltage Rating: 30V
  • Current Rating: 40A
  • Trip Current: 6A
  • Time to Trip: 10.8s
  • Operating Temperature Range: -40°C ~ 85°C
  • Resistance - Initial (Ri) (Min): 20 mOhms
  • Resistance - Post Trip (R1) (Maximum): 80 mOhms
  • Package Type: Radial, disc
  • Lead Spacing: 0.201" (5.10mm)
  • Height when Seated: 0.756" (19.20mm)
  • Dimensions: 0.449" L x 0.118" W (11.40mm x 3.00mm)
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (Unlimited)
