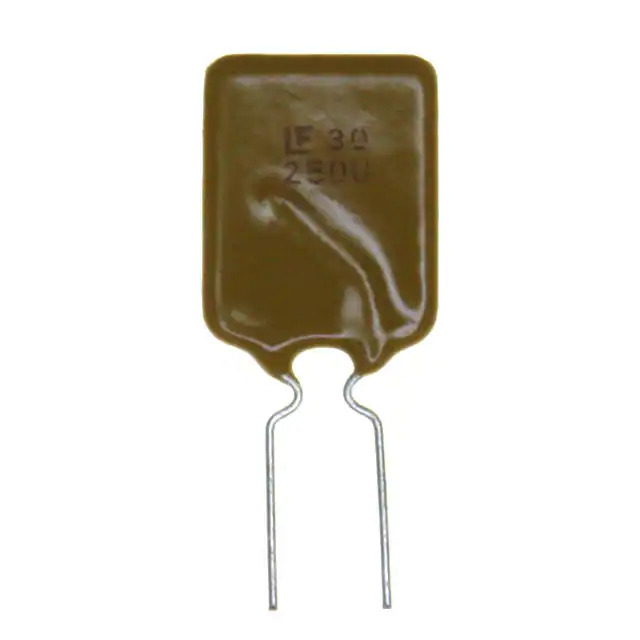

Same model may have multiple batches, images only for reference.

30R250UU

Name: 30R250UU
Brand: Littelfuse Inc.
SKU: 1361734
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	30R250UU
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 2.5A RADIAL / Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 30R
Package	Bulk
Product Status	Active
Type	Polymeric
Voltage - Max	30V
Current - Hold (Ih) (Max)	2.5 A
Current - Trip (It)	5 A
Current - Max	40 A
Time to Trip	10.3 s
Resistance - Initial (Ri) (Min)	20 mOhms
Resistance - Post Trip (R1) (Max)	70 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Max)	0.720" (18.30mm)
Thickness (Max)	-
Lead Spacing	0.118" (3.00mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361734-30R250UU
Ultra Librarian 3D Model	Ultra Librarian 30R250UU CAD Model

Description

The 30R250UU is a polymeric PTC resettable fuse from the POLY-FUSE® 30R series, manufactured by Littelfuse Inc.

Temperature Range: -40°C to 85°C
Maximum Current Rating: 40A
Voltage Rating: 30V
Trip Current: 5A
Time to Trip: 10.3 seconds
Initial Resistance: 20 mOhms
Post-Trip Resistance: 70 mOhms
Package: Radial, Disc
Mounting Type: Through Hole
Approvals: cURus and TUV
