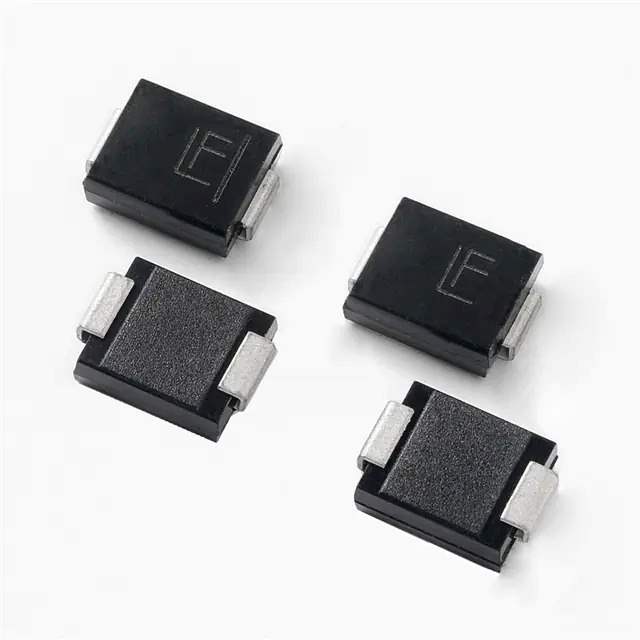

Same model may have multiple batches, images only for reference.

3.0SMCJ33CA

Name: 3.0SMCJ33CA
Brand: Littelfuse Inc.
SKU: 850555
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3.0SMCJ33CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIOD 3000W DO-214AB 33V / 53.3V Clamp 56.3A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Datasheet	3.0SMCJ33CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	3.0SMCJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	33V
Voltage - Breakdown (Min)	36.7V
Voltage - Clamping (Max) @ Ipp	53.3V
Current - Peak Pulse (10/1000µs)	56.3A
Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Telecom
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
Base Product Number	3.0SMCJ
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	850555-3.0SMCJ33CA
Ultra Librarian 3D Model	Ultra Librarian 3.0SMCJ33CA CAD Model

Alternative Products

Description

The 3.0SMCJ33CA is a Zener type TVS diode used in circuit protection applications, specifically in the telecom industry.

Package: Tape and reel
Standard Package Quantity: 3,000 pcs
Reverse Standoff Voltage: 33V
Breakdown Voltage: 36.7V
Clamping Voltage @ Peak Pulse Current: 53.3V
Power Peak Pulse: 3000W (3kW)
Channel Type: Bidirectional
Peak Pulse Current: 56.3A @ 10/1000µs
Mounting Style: Surface mount
Package/Case: DO-214AB (SMC)
Operating Temperature Range: -65°C to 150°C
Manufacturer: Littelfuse Inc.
