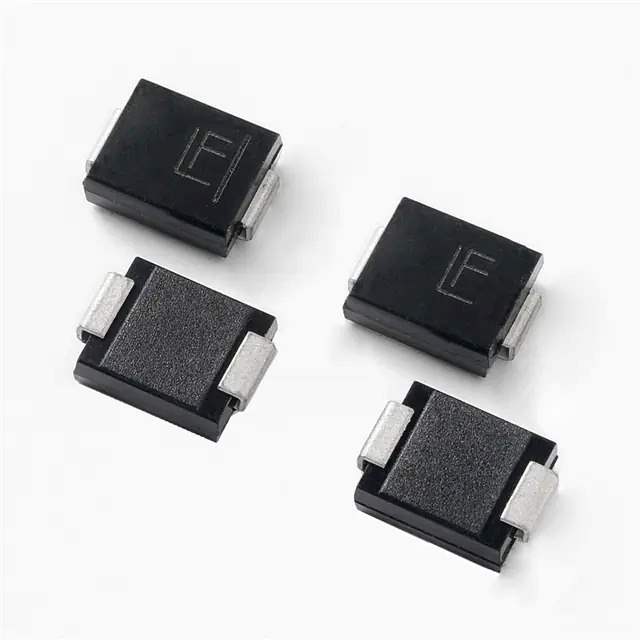

Same model may have multiple batches, images only for reference.

3.0SMCJ33A

Name: 3.0SMCJ33A
Brand: Littelfuse Inc.
SKU: 545239
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3.0SMCJ33A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3000W UNI DO-214AB 33V
Datasheet	3.0SMCJ33A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	3.0SMCJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	33V
Voltage - Breakdown (Min)	36.7V
Voltage - Clamping (Max) @ Ipp	53.3V
Current - Peak Pulse (10/1000µs)	56.3A
Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Telecom
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
Base Product Number	3.0SMCJ
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	545239-3.0SMCJ33A
Ultra Librarian 3D Model	Ultra Librarian 3.0SMCJ33A CAD Model

Alternative Products

Description

The 545239-3.0SMCJ33A is a transient voltage suppressor diode from Littelfuse Inc.

Series: 3.0SMCJ
Application: telecom
Reverse Standoff Voltage: 33V
Breakdown Voltage: 36.7V
Clamping Voltage: 53.3V @ peak pulse current of 56.3A
Peak Pulse Power: 3000W (3kW)
Direction: unidirectional
Mounting Type: surface mountable
Package: DO-214AB (SMC)
Operating Temperature: -65°C to 150°C
Suitable for: wide range of electronic devices.
