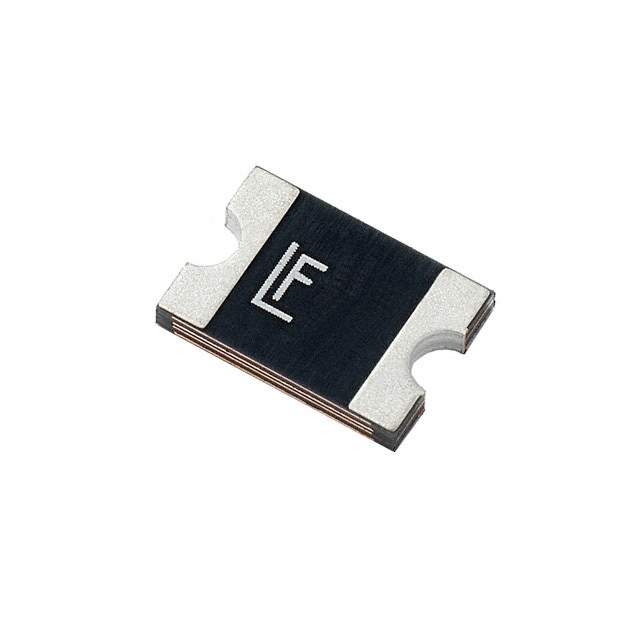

2920L300/15DR Real Image
Same model may have multiple batches, images only for reference.

2920L300/15DR

Part No 2920L300/15DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 15V 3A SMD 2920
Datasheet
2920L300/15DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Max) 3A
Current - Trip (It) 5A
Time to Trip 20s
Resistance - Initial (Ri) (Min) 15 mOhm
Resistance - Post Trip (R1) (Max) 48 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.289" L x 0.202" W (7.35mm x 5.12mm)
Thickness (Max) 0.049" (1.25mm)
Approvals cURus, TUV
Win Source Part Number 005629-2920L300/15DR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2920L300/15DR CAD Model

Description

Product Overview

The 2920L300/15DR is an advanced resettable fuse providing superior circuit protection with a holding current of 3.0 A and a maximum operating voltage of 15V DC, making it perfect for various power applications.

Features and Benefits

  • Quick response to overcurrent conditions
  • Durable and compact design
  • Reliable performance under variable environmental conditions
  • Environmentally friendly with minimal material usage

Applications

  • Computing equipment
  • Portable electronics
  • Medical devices
  • LED lighting systems
