Same model may have multiple batches, images only for reference.

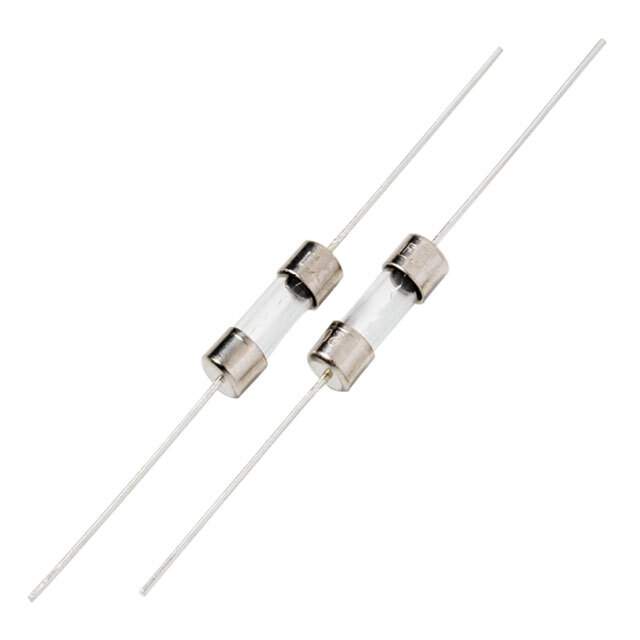

2205001.HXP Real Image
Same model may have multiple batches, images only for reference.

2205001.HXP

Part No 2205001.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 1A 250VAC 2AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 25 Weeks
Features AC DC Fuse Cartridge, Glass Through Hole 2AG, 5mm x 15mm (Axial)
Manufacturer Littelfuse Inc.
Series 2205
Package Bulk
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Package 2AG, 5mm x 15mm (Axial)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number F7972, 2205001HXP, 2205001.HXP-ND, -2205001.HXP
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905953-2205001.HXP
Ultra Librarian 3D Model Ultra Librarian 2205001.HXP CAD Model

Description

The Littelfuse Inc. AC DC Fuse Cartridge is an electronic component that is highly reliable and efficient.

  • Design: glass through-hole 2AG, 5mm x 15mm (axial)
  • Package: bulk
  • Mounting: through-hole
  • Series: 2205
  • Operating Temperature Range: -55°C ~ 125°C
  • Category: circuit protection
  • Supply and Demand Status: balanced
  • Package Quantity: 100
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 25 weeks
  • HTSUS: 8536.10.0040
  • Other Part Numbers: F7972, 2205001HXP, 2205001.HXP-ND, and -2205001.HXP
