The 20KPA26CA is a Transient Voltage Suppressor (TVS) diode manufactured by Littelfuse Inc. It is designed to protect sensitive electronic components from voltage transients induced by lightning, inductive load switching, and Electrostatic Discharge (ESD). The '20KPA' indicates the power dissipation capability (20,000 Watts peak pulse power), and '26CA' signifies a specific reverse standoff voltage (26V) and bidirectional polarity (CA indicates bidirectional). This TVS diode is commonly used to safeguard circuits in industrial, telecommunications, and consumer electronics applications.

Applications

• Protection of I/O Interfaces
• Power supply protection
• Telecommunication equipment
• Industrial control systems
• Consumer electronics

Features

• Bidirectional TVS Diode
• High Surge Capability (20KPA Peak Pulse Power)
• Fast Response Time
• Low Clamping Voltage
• RoHS Compliant

Benefits

• Robust protection against voltage transients, preventing damage to sensitive components.
• Effective handling of high surge currents, ensuring reliable protection during severe events.
• Quick response to transient events, minimizing the risk of damage.
• Limits voltage spikes to a safe level, protecting downstream circuitry.
• Environmentally friendly due to RoHS compliance.

Additional Details

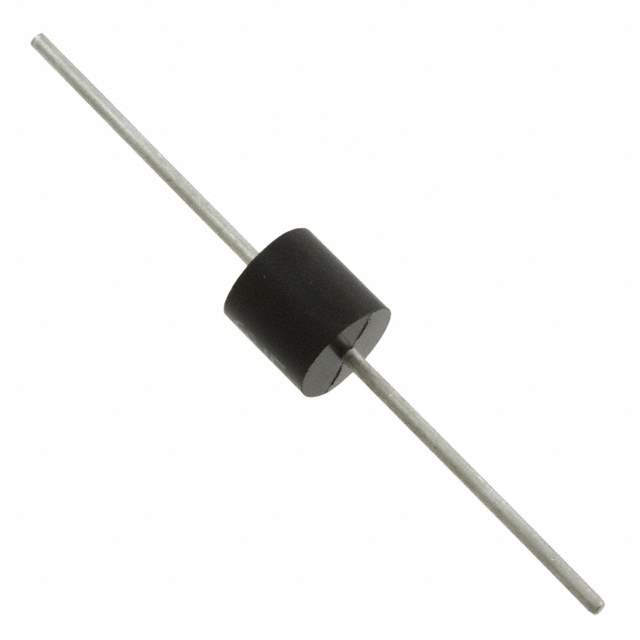

The 20KPA26CA TVS diode is typically available in an axial-leaded package for through-hole mounting. Its key specifications include the reverse standoff voltage, breakdown voltage, clamping voltage, and peak pulse current. When selecting a TVS diode, it's essential to consider the operating voltage of the protected circuit and the expected surge current levels. The clamping voltage should be lower than the maximum voltage that the protected components can withstand. The TVS diode diverts excess current away from the protected circuit during a transient event. Refer to the manufacturer's datasheet for detailed electrical characteristics, surge waveforms, and application guidelines. Proper PCB layout is important to minimize inductance and ensure effective transient suppression. Parameters like peak pulse current and power dissipation derating with temperature are important to consider for reliable operation. This device helps to ensure the longevity and reliability of electronic equipment by mitigating the effects of transient voltage surges.
