Same model may have multiple batches, images only for reference.

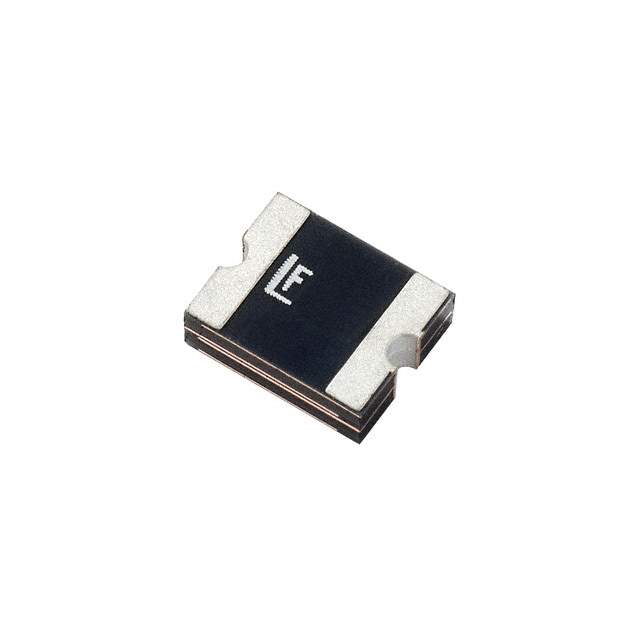

2016L200PR Real Image
Same model may have multiple batches, images only for reference.

2016L200PR

Part No 2016L200PR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYFUSE® Resettable PTCs | PTC RESET FUSE 6V 2A 2016
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Maximum) 2A
Current - Trip (It) 4.2A
Time to Trip 3s
Resistance - Initial (Ri) (Minimum) 48 mOhms
Resistance - Post Trip (R1) (Maximum) 100 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2016 (5041 Metric), Concave
Parts Dimension 0.200" L x 0.160" W (5.08mm x 4.07mm)
Thickness (Maximum) 0.030" (0.75mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1122853-2016L200PR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2016L200PR CAD Model

Description

The Littelfuse Inc. Polymeric SMD fuse is a circuit protection component designed for use in electronic systems.

  • Manufacturer: Littelfuse Inc.
  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Trip Current: 4.2A
  • Time to Trip: 3 seconds
  • Approvals: cURus and TUV approved
  • Resistance: 48 mOhms
  • Package: 2016 (5041 Metric), Concave
  • Maximum Thickness: 0.030" (0.75mm)
  • Current Hold (Ih) (maximum): 2A
  • Resistance Post Trip (R1) (maximum): 100 mOhms
  • Popularity: Popular
  • Supply and Demand: Sufficient
