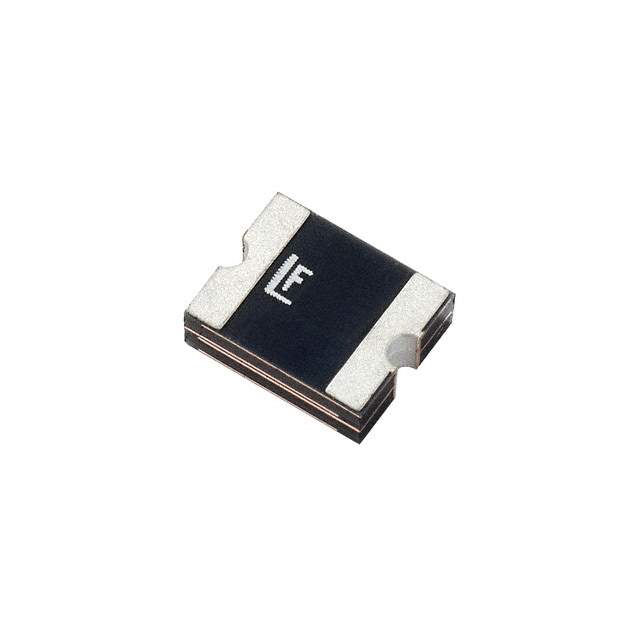

2016L075/60MR Real Image 2016L075/60MR label picture
Same model may have multiple batches, images only for reference.
2016L075/60MR Real Image 2016L075/60MR label picture
2016L075/60MR Real Image 2016L075/60MR label picture
Same model may have multiple batches, images only for reference.

2016L075/60MR

Part No 2016L075/60MR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLY-FUSE Resettable PTCs | PTC RESET FUSE 60V 750MA 2016
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 60V
Current - Max 20A
Current - Hold (Ih) (Maximum) 750mA
Current - Trip (It) 1.5A
Time to Trip 500ms
Resistance - Initial (Ri) (Minimum) 130 mOhms
Resistance - Post Trip (R1) (Maximum) 900 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2016 (5041 Metric), Concave
Parts Dimension 0.200" L x 0.160" W (5.08mm x 4.07mm)
Thickness (Maximum) 0.079" (2.00mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1122849-2016L075/60MR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2016L075/60MR CAD Model

Description

The Littelfuse Inc. 2016L075/60MR is a polymeric type circuit protection fuse, which is designed for SMD mounting. The 2016L075/60MR is manufactured by Littelfuse Inc.

  • Voltage Rating: 60V
  • Current Rating: 20A
  • Current Trip: 1.5A
  • Time to Trip: 500ms
  • Approvals: cURus and TUV
  • Operating Temperature Range: -40°C to 85°C
  • Current Hold: 750mA
  • Initial Resistance: 130 mOhms
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Package Quantity: One Piece
  • MSL Level: 1 (Unlimited)
  • Thickness: 0.079" (2.00mm)
  • Resistance of Post-Trip (R1): 900 mOhms
  • Shape: Concave
  • Applications: Circuit Protection
