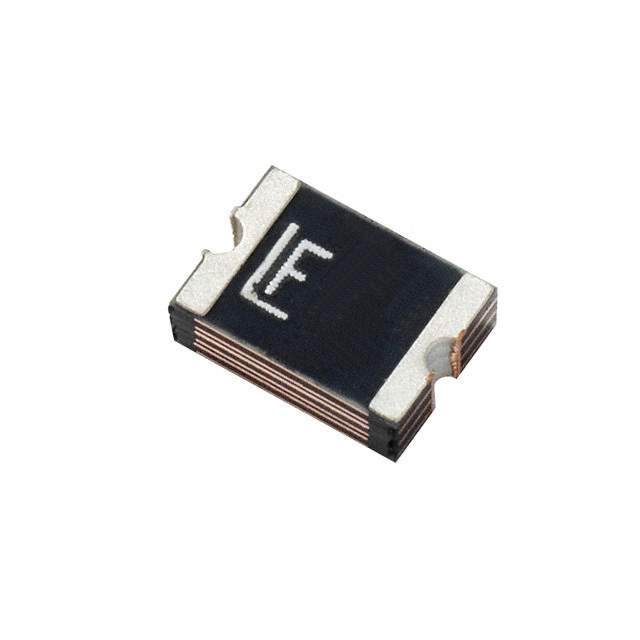

The Littelfuse Inc. POLY-FUSE 1812L is a reliable circuit protection component that can be used in various electronic devices.

• Part Number: 760677-1812L200/12DR
• Package: Reel
• Type: Polymeric
• Operating Temperature Range: -40°C to 85°C
• Package: 1812 (4532 Metric), Concave
• Approvals: cURus, TUV
• Mounting Type: SMD
• Voltage Rating: 12V
• Current Rating: 100A
• Current Trip (It): 3.5A
• Time to Trip: 2s
• Family Name: 1812L
• Dimension: 0.179 inches L x 0.128 inches W (4.55mm x 3.24mm)
• Current Hold (Ih) (Maximum): 2A
• Thickness (Maximum): 0.047 inches (1.20mm)
• Resistance - Initial (Ri) (Minimum): 20 mOhm
• Resistance - Post Trip (R1) (Maximum): 70 mOhm
• RoHS Compliant: Yes
• Halogen-Free: Yes
