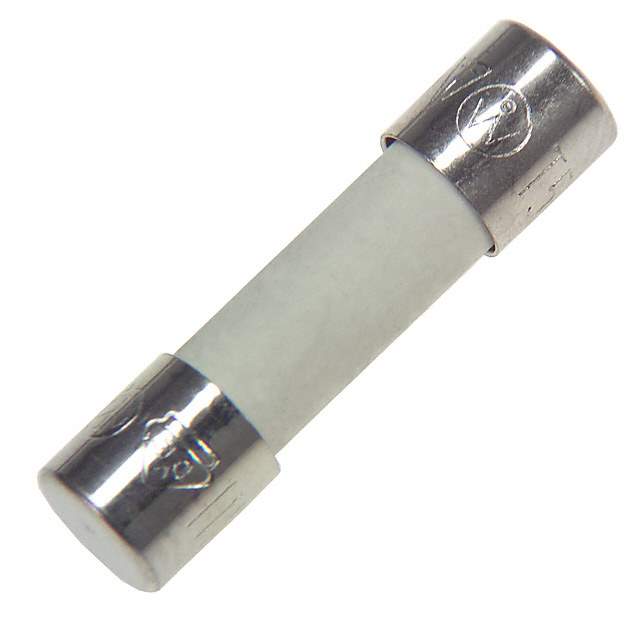

18112500001 Real Image
Same model may have multiple batches, images only for reference.

18112500001

Part No 18112500001
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 2.5A 250VAC 5X20MM / 2.5 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Datasheet
18112500001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 181
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 2.5 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 19.5
Approval Agency BSI, CCC, cULus, PSE, SEMKO, SEV, VDE
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 876275-18112500001
Ultra Librarian 3D Model Ultra Librarian 18112500001 CAD Model

Description

The 876275-18112500001 is a ceramic cartridge fuse from the 181 series, designed for circuit protection and manufactured by Littelfuse Inc.

  • Voltage Rating: 250V AC
  • Response Time: Slow Blow
  • Breaking Capacity: 1.5kA @ Rated Voltage
  • Melting I2t: 19.5
  • Size: 0.205" diameter x 0.787" length (5.20mm x 20.00mm)
  • Package: Bulk package of 1,000 pieces
  • Mounting: Requires a holder
  • Compatible Package/Case: 5mm x 20mm
  • Operating Temperature Range: -40°C to 85°C
  • Product Status: Obsolete
  • Certifications: BSI, CCC, cULus, PSE, SEMKO, SEV, and VDE
