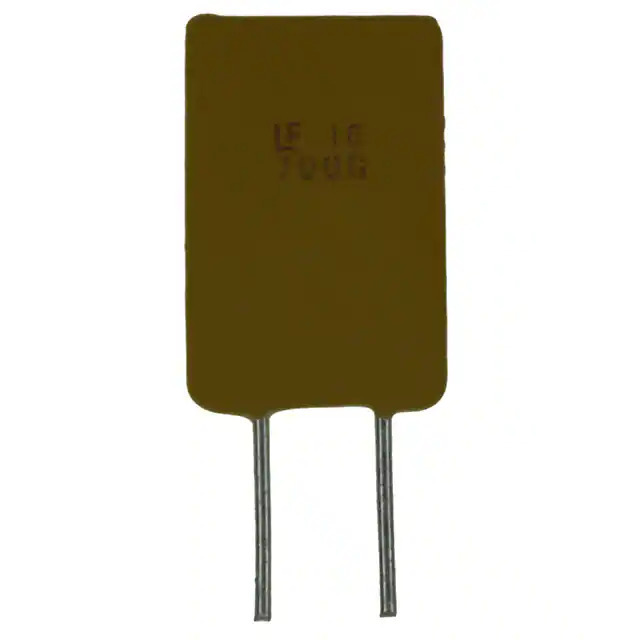

16R700GMR Littelfuse Inc.
Same model may have multiple batches, images only for reference.

16R700GMR

Part No 16R700GMR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 7A RADIAL / Polymeric PTC Resettable Fuse 16V 7 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 16R
Product Status Active
Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 7 A
Current - Trip (It) 11.9 A
Current - Max 100 A
Time to Trip 3.5 s
Resistance - Initial (Ri) (Min) 7.7 mOhms
Resistance - Post Trip (R1) (Max) 20 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) 0.776" (19.70mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361746-16R700GMR
Ultra Librarian 3D Model Ultra Librarian 16R700GMR CAD Model

Description

The 1361746-16R700GMR is a polymeric PTC resettable fuse manufactured by Littelfuse Inc.

  • Series: POLY-FUSE® 16R
  • Operating Temperature: -40°C to 85°C
  • Maximum Current Rating: 100A
  • Hold Current: 7A
  • Voltage Rating: 16V
  • Trip Current: 11.9A
  • Time to Trip: 3.5 seconds
  • Size: 0.441" L x 0.118" W (11.20mm x 3.00mm)
  • Mounting Type: Through-Hole
  • Approvals: cURus and TUV
