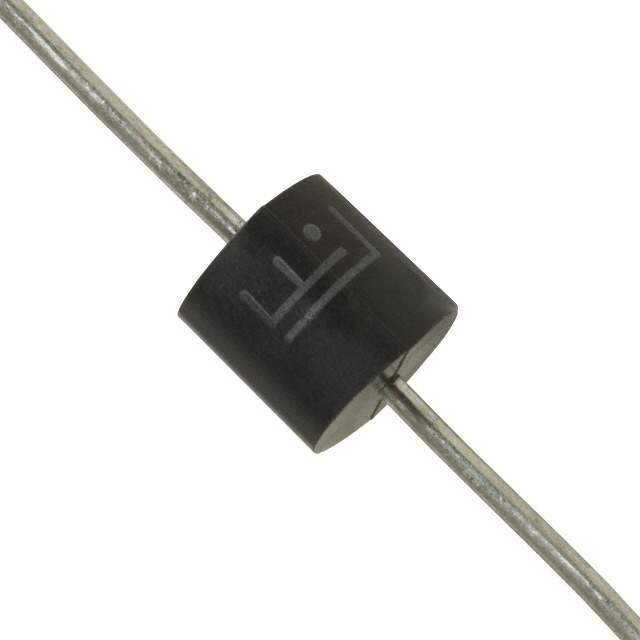

15KPA22CA Real Image
Same model may have multiple batches, images only for reference.

15KPA22CA

Part No 15KPA22CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 22V 37.1V P600 / GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.57V
Voltage - Clamping (Maximum) at Ipp 37.1V
Current - Peak Pulse (10/1000μs) 407A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications Use For General
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 800
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809128-15KPA22CA
Ultra Librarian 3D Model Ultra Librarian 15KPA22CA CAD Model

Description

The Littelfuse Inc. 809128-15KPA22CA is a zener type electronic component that is mounted through hole.

  • Channel: Bidirectional
  • Voltage-Reverse Standoff (typ): 22V
  • Voltage-Breakdown (min): 24.57V
  • Current-Peak Pulse (10/1000μs): 407A
  • Power-Peak Pulse: 15000W (15kW)
  • Supplier Device Package: P600
  • Temperature Range: -55°C to 175°C
  • Manufacturer Pack Quantity: 800
  • Voltage-Clamping (maximum) @ Ipp: 37.1V
