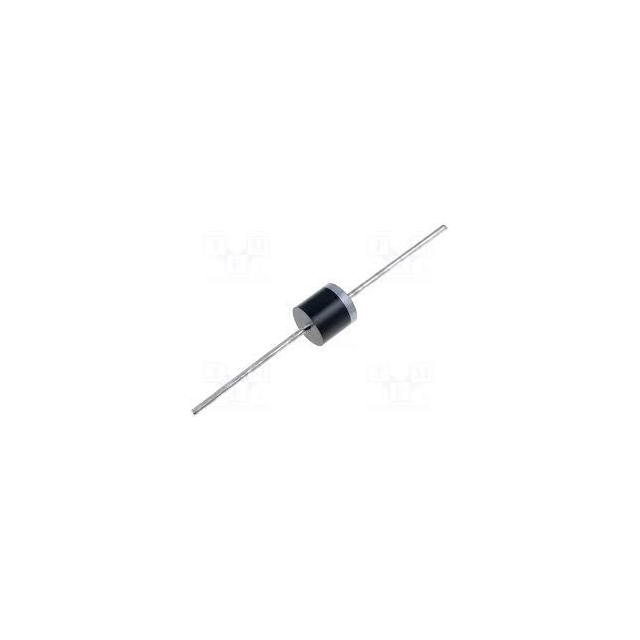

Same model may have multiple batches, images only for reference.

15KP70CA

Name: 15KP70CA
Brand: Littelfuse Inc.
SKU: 538671
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	15KP70CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TRANSIENT VOLTAGE SUPPRESSOR \| TVS DIODE 70V 114V P600
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Status	Obsolete
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff	70V
Voltage - Breakdown (Minimum)	77.8V
Voltage - Clamping (Maximum) at Ipp	114V
Current - Peak Pulse (10/1000μs)	132A
Power - Peak Pulse	15000W (15kW)
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 175°C
Mounting Style	Through Hole
Manufacturer Package	P600, Axial
Supplier Device Package	P600
Manufacturer Pack Quantity	800
MSL Level	1 (Unlimited)
Win Source Part Number	1121359-15KP70CA
Manufacturer Homepage	www.eicsemi.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 15KP70CA CAD Model

Alternative Products

Description

The Littelfuse Inc. 15KP70CA is a Zener diode that is designed for use in various electronic applications.

Power Peak Pulse: 15000W (15kW)
Current Peak Pulse: 132A
Voltage Breakdown (Minimum): 77.8V
Voltage Clamping (Maximum) @ Ipp: 114V
Win Source Part Number: 1121359-15KP70CA
Category: Circuit Protection
