Same model may have multiple batches, images only for reference.

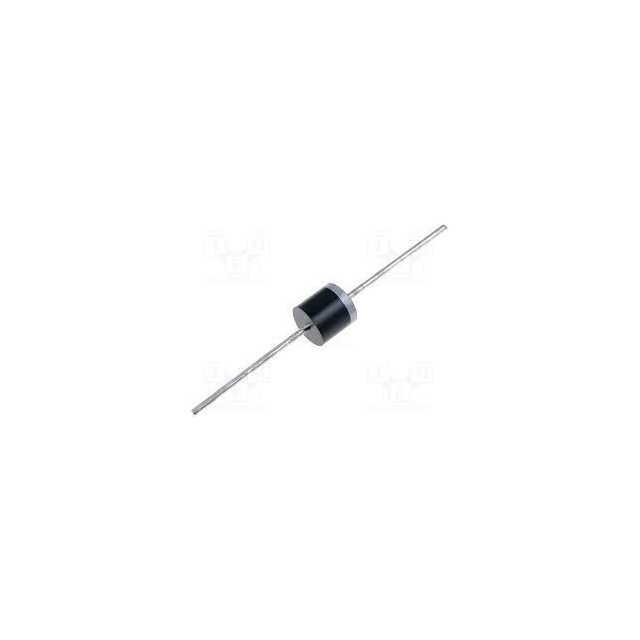

15KP70A Real Image
Same model may have multiple batches, images only for reference.

15KP70A

Part No 15KP70A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 70V 114V P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 70V
Voltage - Breakdown (Minimum) 77.8V
Voltage - Clamping (Maximum) at Ipp 114V
Current - Peak Pulse (10/1000μs) 132A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Win Source Part Number 1121358-15KP70A
Manufacturer Homepage www.eicsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15KP70A CAD Model

Description

The 1121358-15KP70A from Littelfuse Inc. is a zener type capacitor that is through-hole mounted. It is a unidirectional channel capacitor with a peak pulse current of 132A (10/1000μs) and a power peak pulse of 15000W (15kW).

  • Mounting Type: Through-Hole
  • Channel: Unidirectional
  • Peak Pulse Current: 132A (10/1000μs)
  • Power Peak Pulse: 15000W (15kW)
  • Application: General Purpose
  • Power Line Protection: No
  • Supplier Device Package: P600
  • Status: Obsolete
  • Voltage Reverse Standoff: 70V
  • Breakdown Voltage Minimum: 77.8V
  • Voltage Clamping Maximum @ Ipp: 114V
