Same model may have multiple batches, images only for reference.

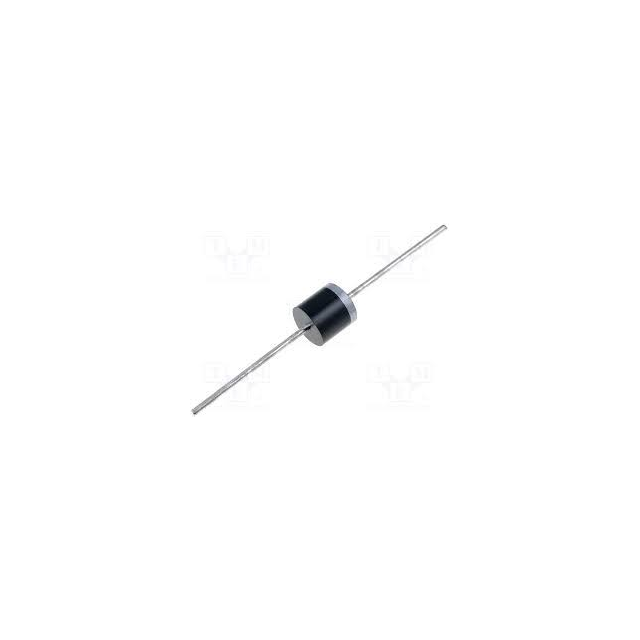

15KP48A Real Image
Same model may have multiple batches, images only for reference.

15KP48A

Part No 15KP48A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 48V 77.7V P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 48V
Voltage - Breakdown (Minimum) 53.3V
Voltage - Clamping (Maximum) at Ipp 77.7V
Current - Peak Pulse (10/1000μs) 193A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Win Source Part Number 1121356-15KP48A
Manufacturer Homepage www.eicsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15KP48A CAD Model

Description

This electronic component is a zener diode manufactured by Littelfuse Inc. with the Win Source Part Number 1121356-15KP48A.

  • Design: designed to protect electronic circuits from voltage spikes and surges
  • Peak Pulse Current: 193A
  • Peak Power: 15000W (15kW)
  • Type: through-hole type zener diode
  • Packaging: P600 packaging
  • Application: ideal for general purpose applications
  • Status: obsolete
  • Supply and Demand: limited supply and demand status
  • Voltage Breakdown: 53.3V
  • Voltage Clamping: 77.7V @ Ipp
