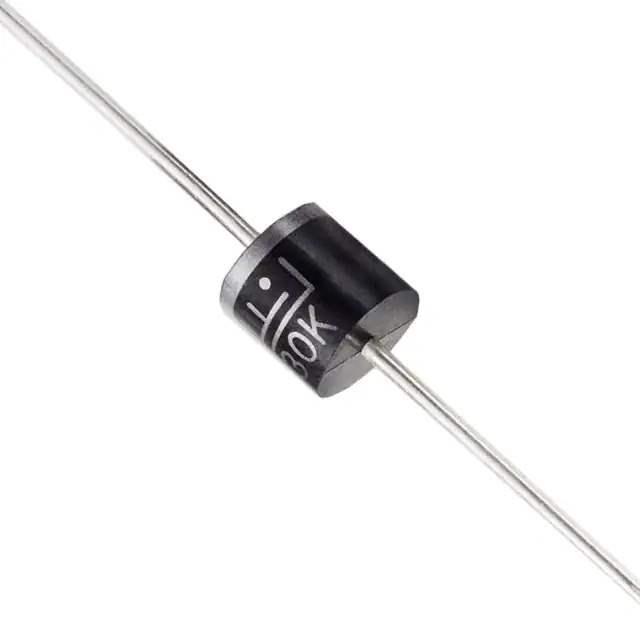

15KP18 Real Image
Same model may have multiple batches, images only for reference.

15KP18

Part No 15KP18
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 18VWM 32.45VC P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series 15KP
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 18.9V
Voltage - Clamping (Max) @ Ipp 32.45V
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Base Product Number 15KP
Standard Package 800 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 538666-15KP18
Ultra Librarian 3D Model Ultra Librarian 15KP18 CAD Model

Description

The 538666-15KP18 is a Zener type transient voltage suppressor diode designed for circuit protection. It is suitable for general-purpose applications and comes in a bulk package of 800 pieces.

  • Channel: Unidirectional
  • Reverse Standoff Voltage: 18V
  • Breakdown Voltage: 18.9V
  • Clamping Voltage: 32.45V @ Peak Pulse Current
  • Peak Pulse Power: 15,000W (15kW)
  • Mounting Type: Through-Hole
  • Package/Case: P600 Axial
  • Operating Temperature: -55°C to 175°C
  • Product Status: Obsolete
  • Manufacturer: Littelfuse Inc.
