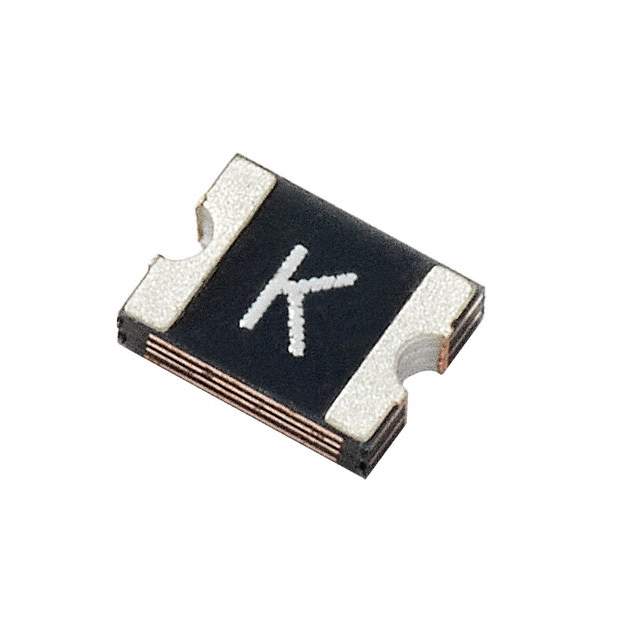

Same model may have multiple batches, images only for reference.

1210L075/24PR

Name: 1210L075/24PR
Brand: Littelfuse Inc.
SKU: 760315
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1210L075/24PR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTS RESETBLE 24V 0.750A 1210
Datasheet	1210L075/24PR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	POLY-FUSE, 1210L
Packaging	Reel package
Type	Polymeric
Voltage - Max	24V
Current - Max	100A
Current - Hold (Ih) (Maximum)	750mA
Current - Trip (It)	1.5A
Time to Trip	100ms
Resistance - Initial (Ri) (Minimum)	130 mOhm
Resistance - Post Trip (R1) (Maximum)	400 mOhm
Operating Temperature Range	-40°C ~ 85°C
Mounting	SMD
Package	1210, Concave
Dimension	0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Maximum)	0.071" (1.80mm)
Approvals	cURus, TUV
Win Source Part Number	760315-1210L075/24PR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	1210L
Introduction Date	June 15, 2006
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian 1210L075/24PR CAD Model

Description

The Littelfuse Inc. 1210L075/24PR is a polymeric fuse designed to protect electronic circuits from overcurrents.

Maximum Voltage Rating: 24V
Maximum Current Rating: 100A
Current Trip: 1.5A
Time to Trip: 100ms
Operating Temperature: -40°C to 85°C
Approvals: cURus, TUV
Mounting Type: SMD
Package Type: 1210 concave
Resistance: 130 mOhm
Post-Trip Resistance: 400 mOhm
Halogen-Free: Yes
Country of Origin: Taiwan
Estimated EOL Date: 2025
Popularity: Medium
