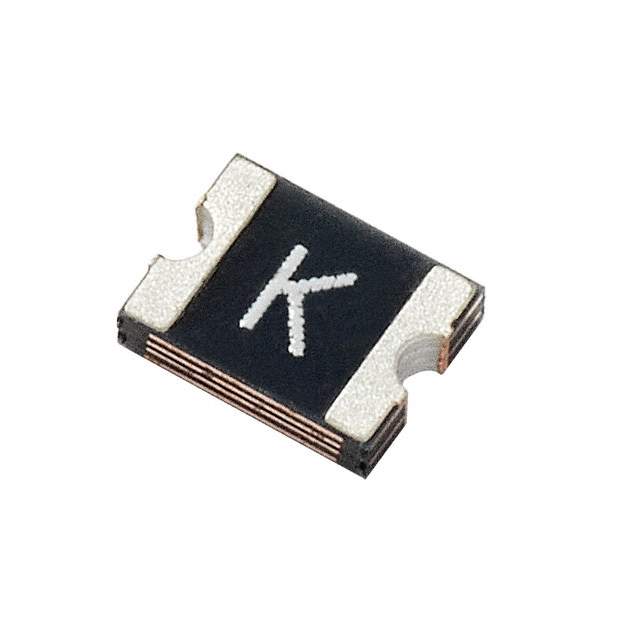

The Littelfuse 1210L010WR is a 1210 size surface mount resettable PTC (Positive Temperature Coefficient) fuse. These devices are used to protect circuits from overcurrent conditions. They offer a reliable and predictable method of circuit protection, automatically resetting after the fault condition is removed and power is cycled.

Applications

• USB port protection: Protecting USB ports in computers, peripherals, and other devices.
• HDMI port protection: Preventing damage to HDMI ports from overcurrent events.
• Power supply protection: Limiting current in power supplies to prevent component failure.
• Game consoles: Overcurrent protection in gaming devices.
• General electronic equipment: Used broadly in electronic devices to protect sensitive components.
• Mobile phones and tablets: Overcurrent protection for internal circuits.

Features

• Resettable: Automatically resets after the overcurrent condition is removed.
• Surface mount: Designed for surface mount PCB assembly.
• Compact size: 1210 footprint for space-constrained applications.
• Fast trip time: Quickly reacts to overcurrent events.
• Low resistance: Minimizes voltage drop during normal operation.
• Agency approvals: UL, CSA, and TUV approvals for safety and reliability.

Benefits

• Circuit protection: Prevents damage to sensitive components from overcurrent conditions.
• Reduced downtime: Eliminates the need to replace blown fuses, reducing downtime and maintenance costs.
• Improved product reliability: Enhances the reliability of electronic devices by protecting them from overcurrent events.
• Cost-effective: Offers a cost-effective solution for circuit protection compared to traditional fuses.
• Space-saving: Compact size allows for use in space-constrained applications.

Additional Details

The 1210L010WR has a hold current (Ih) of 100mA and a trip current (It) of 200mA. The maximum voltage is 30V, and the maximum interrupt current is 10A. It is crucial to consult the Littelfuse datasheet for complete specifications and application guidelines to ensure proper implementation and performance.
