Same model may have multiple batches, images only for reference.

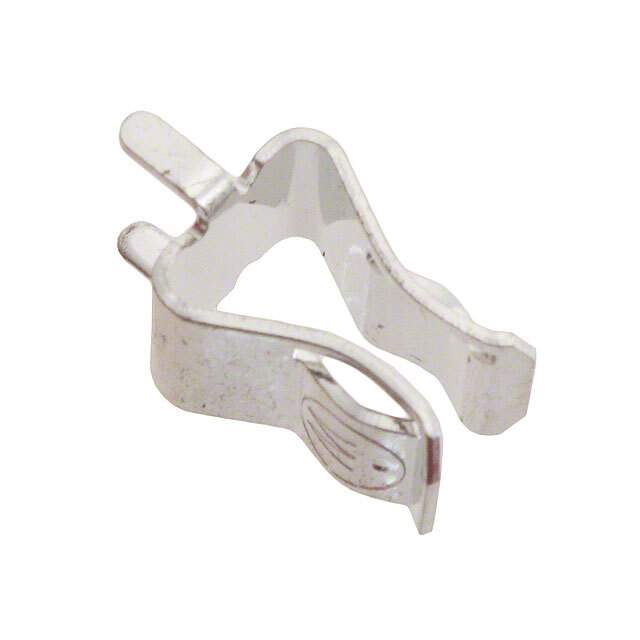

10207101009 Real Image
Same model may have multiple batches, images only for reference.

10207101009

Part No 10207101009
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 500V 10A PCB / Fuse Clip 10 A 500V 1 Circuit Cartridge Through Hole
Datasheet
10207101009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 102071
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.25" Dia (6.35mm)
Current Rating (Amps) 10 A
For Use With/Related Products 1/4" Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage 500V
Orientation Horizontal
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 905027-10207101009
Ultra Librarian 3D Model Ultra Librarian 10207101009 CAD Model

Description

The 905027-10207101009 is a fuseholder designed for 1/4" Dia fuses.

  • Series: 102071
  • Fuse Size: 0.25" Dia (6.35mm)
  • Termination Style: PC Pin
  • Contact Finish: Tin-Plated Brass
  • Mounting Type: Horizontal
  • Voltage Rating: 500V
  • Circuits: 1
  • Current Rating: 10A
  • Manufacturer: Littelfuse Inc.
  • Product Status: Active
  • Package: Bulk
  • Package Quantity: 1,000 pcs
