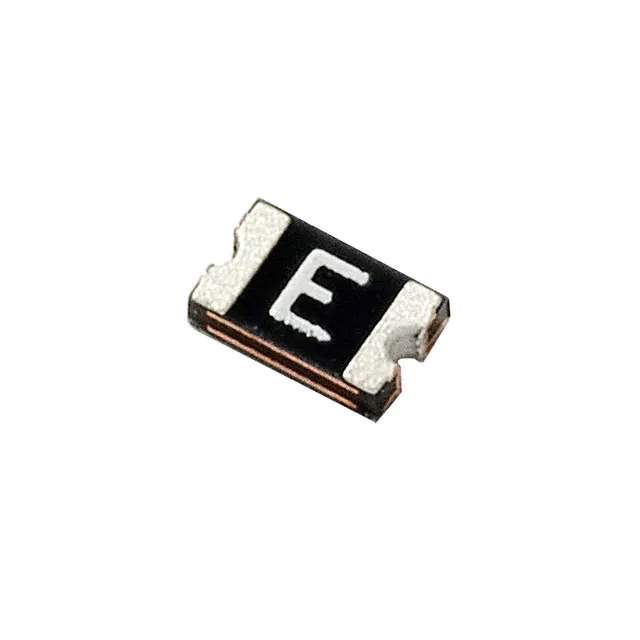

Same model may have multiple batches, images only for reference.

0805L300SLWR

Name: 0805L300SLWR
Brand: Littelfuse Inc.
SKU: 853416
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0805L300SLWR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 6V 3A 0805
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, LoRho
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	6V
Current - Hold (Ih) (Max)	3 A
Current - Trip (It)	6 A
Current - Max	50 A
Time to Trip	5 s
Resistance - Initial (Ri) (Min)	3 mOhms
Resistance - Post Trip (R1) (Max)	30 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric), Concave
Size / Dimension	0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max)	0.055" (1.40mm)
Approval Agency	cURus, TUV
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
California Prop 65	Warning Information
Win Source Part Number	853416-0805L300SLWR
Ultra Librarian 3D Model	Ultra Librarian 0805L300SLWR CAD Model

Description

The 853416-0805L300SLWR is a polymeric PTC resettable fuse circuit protection component from Littelfuse Inc.

Series: POLY-FUSE®, LoRho
Packaging: Tape and Reel
Size/Dimension: 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness: 0.055" (1.40mm)
Voltage (Max): 6V
Current (Max): 50A
Hold Current: 3A
Trip Current: 6A
Time to Trip: 5s
Mounting Type: Surface Mount
Package/Case: 0805 (2012 Metric), Concave
Operating Temperature: -40°C to 85°C
Initial Resistance: 3 mOhms
Post-Trip Resistance: 30 mOhms
Product Status: Active
Standard Package: 3,000 pcs
Approvals: cURus and TUV
