Same model may have multiple batches, images only for reference.

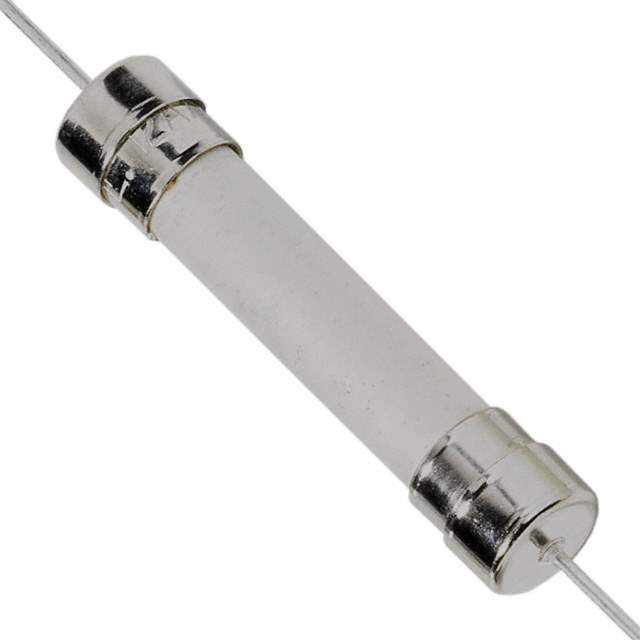

0505012.MXEP Real Image
Same model may have multiple batches, images only for reference.

0505012.MXEP

Part No 0505012.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 12A 450VAC 250VDC 3AB / 12 A 450 V AC 250 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 505
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 12 A
Voltage Rating - AC 450 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 20kA AC, 1kA DC
Melting I2t 192
Approval Agency CE, cULus, SEMKO
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.0117 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0505012.MXEP-ND,F1627,0505012MXEP,-1024-0505012.MXEP
Standard Package 1,000
Win Source Part Number 988890-0505012.MXEP
Ultra Librarian 3D Model Ultra Librarian 0505012.MXEP CAD Model

Description

This electronic component is a ceramic cartridge fuse that belongs to the Circuit Protection category.

  • Win Source Part Number: 988890-0505012.MXEP
  • Series: 505
  • Response Time: Fast Blow
  • Breaking Capacity: 20kA AC, 1kA DC @ 450V AC and 250V DC
  • Melting I2t: 192
  • DC Cold Resistance: 0.0117 Ohms
  • Mounting: Through-Hole
  • Package/Case: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
  • Manufacturer: Littelfuse Inc.
