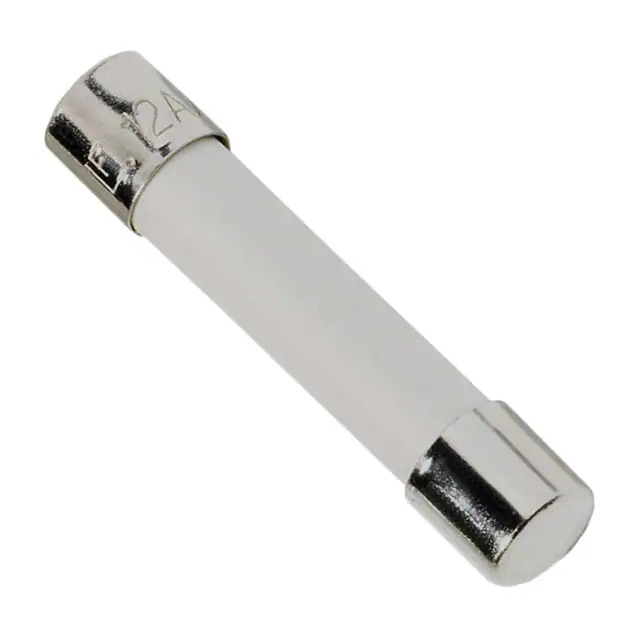

Same model may have multiple batches, images only for reference.
0505010.MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0505010.MXP

Part No 0505010.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 10A 450VAC 250VDC 3AB / 10 A 450 V AC 250 V DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 505
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 10 A
Voltage Rating - AC 450 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 20kA AC, 1kA DC
Melting I²t 91
Approval Agency CE, cULus, SEMKO
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.0167 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361420-0505010.MXP
Ultra Librarian 3D Model Ultra Librarian 0505010.MXP CAD Model

Description

The 1361420-0505010.MXP is a fuse component manufactured by Littelfuse Inc.

  • Series: 505
  • Package: Bulk
  • Package/Case: 3AB, 3AG, 1/4" x 1-1/4"
  • Mounting: Holder
  • Size: 0.250" diameter x 1.250" length (6.35mm x 31.75mm)
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 10A
  • Voltage (AC): 450V
  • Voltage (DC): 250V
  • Breaking Capacity (AC): 20kA
  • Breaking Capacity (DC): 1kA
