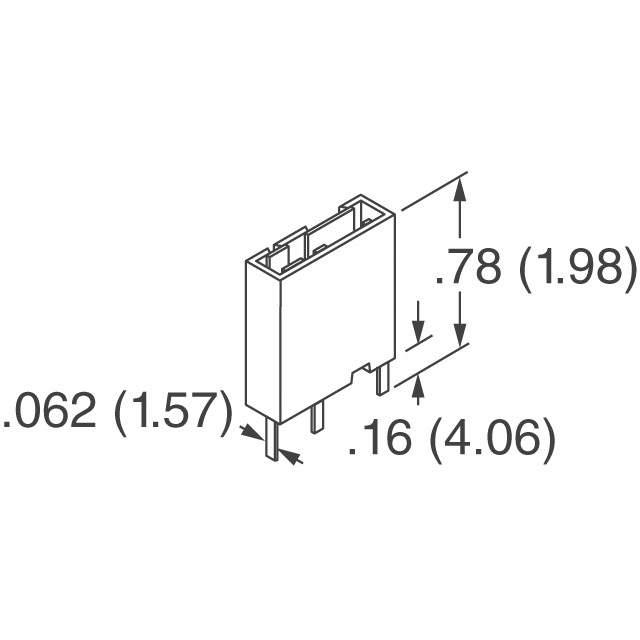

04820002ZXBF Real Image1 04820002ZXBF Real Image2
Same model may have multiple batches, images only for reference.
04820002ZXBF Real Image1 04820002ZXBF Real Image2
04820002ZXBF Real Image1 04820002ZXBF Real Image2
Same model may have multiple batches, images only for reference.

04820002ZXBF

Part No 04820002ZXBF
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER BLADE 125V 15A PCB / Fuse Holder 15 A 125V 2 Circuit Blade Through Hole
Datasheet
04820002ZXBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series 482
Package Bulk
Mounting Type Through Hole
Fuse Size 0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)
Current Rating (Amps) 15 A
For Use With/Related Products 481 Alarm Fuse
Fuse Type Blade
Fuseholder Type Holder
Number of Circuits 2
Voltage 125V
Orientation Vertical
Termination Style PC Pin
Contact Material Beryllium Copper
Contact Finish Tin
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Standard Package 50 pcs
Win Source Part Number 1380383-04820002ZXBF
Ultra Librarian 3D Model Ultra Librarian 04820002ZXBF CAD Model

Description

The 1380383-04820002ZXBF is a blade fuseholder from Littelfuse Inc.

  • Series: 482
  • Termination Style: PC Pin
  • Contact Finish: Tin
  • Fuse: 481 Alarm Fuse
  • Fuse Size: 0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)
  • Circuits: 2
  • Voltage Rating: 125V
  • Orientation: Vertical
  • Package: Bulk
  • Standard Package: 50 pcs
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can, Horizontal
  • ECCN: EAR99
  • REACH: Unaffected
