Same model may have multiple batches, images only for reference.

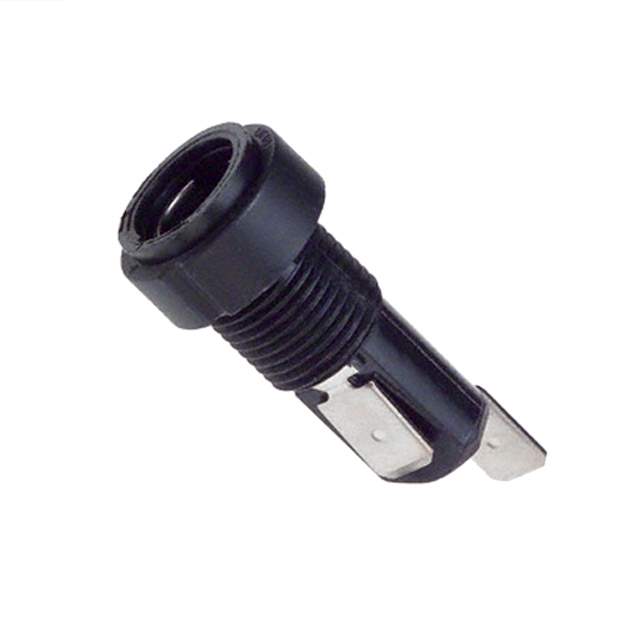

03420838HX010 Real Image
Same model may have multiple batches, images only for reference.

03420838HX010

Part No 03420838HX010
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Holder
Fuse Type Cartridge
For Use With/Related Products 3AG
Fuse Size 1/4" Dia x 1 1/4" L (6.4mm x 31.8mm)
Number of Circuits 1
Voltage 250V
Current Rating (Amps) 20A
Mounting Style Panel Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Contact Material Brass
Contact Finish Nickel
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814223-03420838HX010
Ultra Librarian 3D Model Ultra Librarian 03420838HX010 CAD Model

Description

The Littelfuse Inc. 03420838HX010 is a panel mount cartridge fuse holder for 3AG fuses.

  • Fuse Size: 1/4" Dia x 1 1/4" L (6.4mm x 31.8mm)
  • Voltage Rating: 250V
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Finish: Nickel
  • Material: Brass
  • Number of Circuits: 1
  • Supply and Demand Status: Low
  • Pack Quantity: 100
