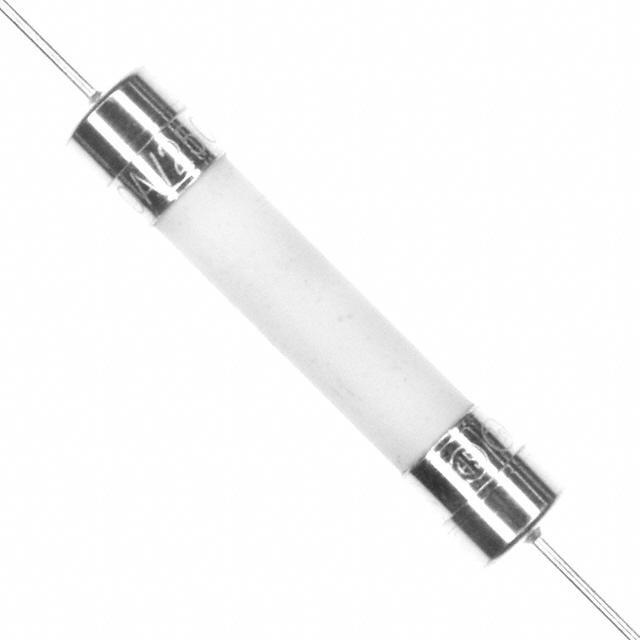

0325020.MXP Littelfuse Inc. 0325020.MXP Real Image
Same model may have multiple batches, images only for reference.
0325020.MXP Littelfuse Inc. 0325020.MXP Real Image
0325020.MXP Littelfuse Inc. 0325020.MXP Real Image
Same model may have multiple batches, images only for reference.

0325020.MXP

Part No 0325020.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 325/326 Series Lead-Free 3AB, Slo-Blo® Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series 325
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 20A
Voltage Rating - AC 250V
Voltage Rating - DC 60V
Response Time Slow
Package 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Mounting Style Through Hole
Breaking Capacity @ Rated Voltage 400A AC, 500A DC
Melting I2t 575
Approvals CE, CSA, K-MARK, PSE, UL
Operating Temperature Range -55°C ~ 125°C
Size 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
Resistance 0.034 Ohm
Win Source Part Number 1120573-0325020.MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Family Name 325
Introduction Date July 25, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian 0325020.MXP CAD Model

Description

The 325 series is a high-quality and reliable circuit protection component from Littelfuse that is designed for use in a wide range of applications.

  • Type: Slow response cartridge ceramic fuse
  • Current Rating: 20A
  • Voltage Rating: 250V AC and 60V DC
  • Breaking Capacity: 400A AC and 500A DC @ rated voltage
  • Approvals: CE, CSA, K-MARK, PSE, and UL
