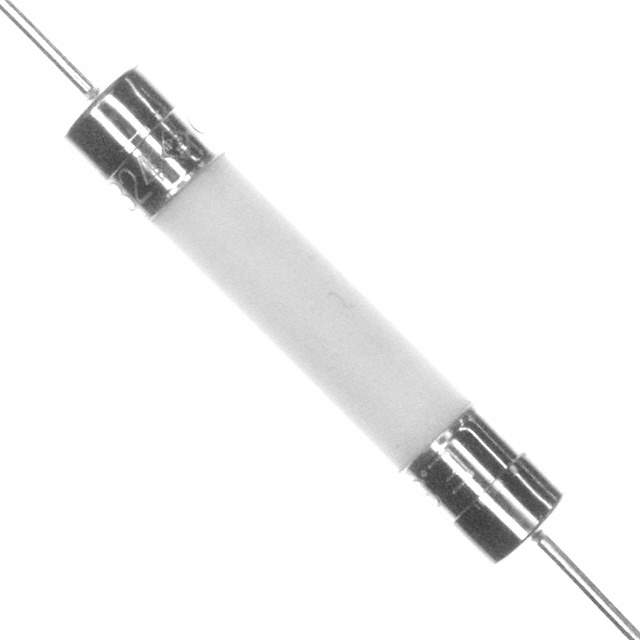

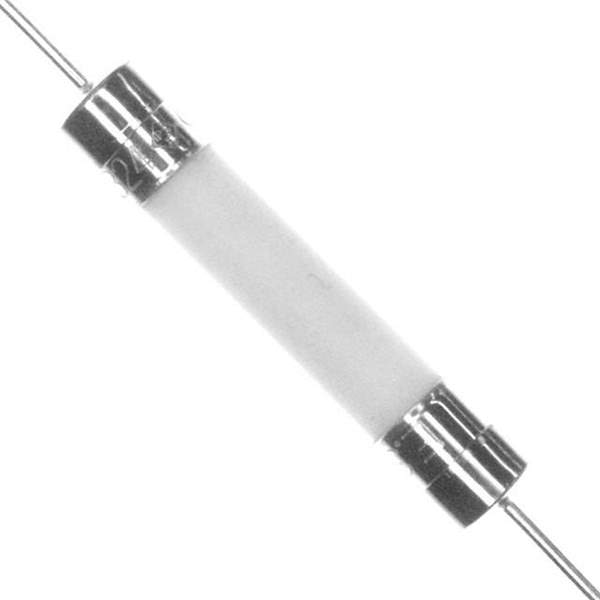

0324006.MXP Real Image
Same model may have multiple batches, images only for reference.

0324006.MXP

Part No 0324006.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 6A 250VAC 125VDC 3AB / 6 A 250 V AC 125 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 324
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 6 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 750A AC, 10kA DC
Melting I2t 45
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.024 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names -0324006.MXP
Standard Package 1,000
Win Source Part Number 991786-0324006.MXP
Ultra Librarian 3D Model Ultra Librarian 0324006.MXP CAD Model

Description

The 991786-0324006.MXP is a ceramic cartridge fuse that is designed for circuit protection.

  • Fuse Type: Fast blow
  • Voltage Rating: 250V AC and 125V DC
  • Breaking Capacity @ Rated Voltage: 750A AC and 10kA DC
  • DC Cold Resistance: 0.024 ohms
  • Melting I2t: 45
  • Package: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Temperature Range: -55°C to 125°C
  • Applications: Various electronic applications
