Same model may have multiple batches, images only for reference.

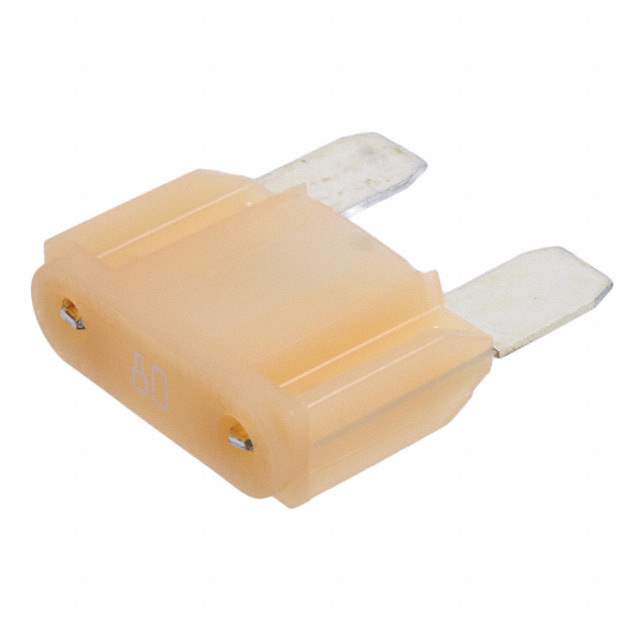

0299080.ZXNV Real Image
Same model may have multiple batches, images only for reference.

0299080.ZXNV

Part No 0299080.ZXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 80A 32VDC BLADE / 80 A AC 32 V DC Fuse Automotive Holder Blade, Max
Datasheet
0299080.ZXNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series MAXI®
Package Bulk
Mounting Type Holder
Fuse Type Automotive
Current Rating (Amps) 80 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case Blade, Max
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 8800
Temperature Range - Operating -40°C ~ 125°C
Color Clear
Dimension 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)
DC Cold Resistance 0.00054 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0299080.ZXOCR-ND,299080,299080.,0299080ZXNV,F3647,0299080.ZXNV-ND,0299080.ZXOCR,-1024-0299080.ZXNV
Standard Package 1,200
Win Source Part Number 990254-0299080.ZXNV
Ultra Librarian 3D Model Ultra Librarian 0299080.ZXNV CAD Model

Description

The Littelfuse MAXI® 990254-0299080.ZXNV fuse is an automotive slow blow fuse with a voltage rating of 32 V DC and a current rating of 80 A.

  • Voltage Rating: 32 V DC
  • Current Rating: 80 A
  • Breaking Capacity: 1kA @ rated voltage
  • Melting I2t: 8800
  • DC Cold Resistance: 0.00054 Ohms
  • Package: Blade, max
  • Response Time: Slow blow
  • Mounting: Holder
  • Operating Temperature Range: -40°C to 125°C
  • Dimensions: 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)
