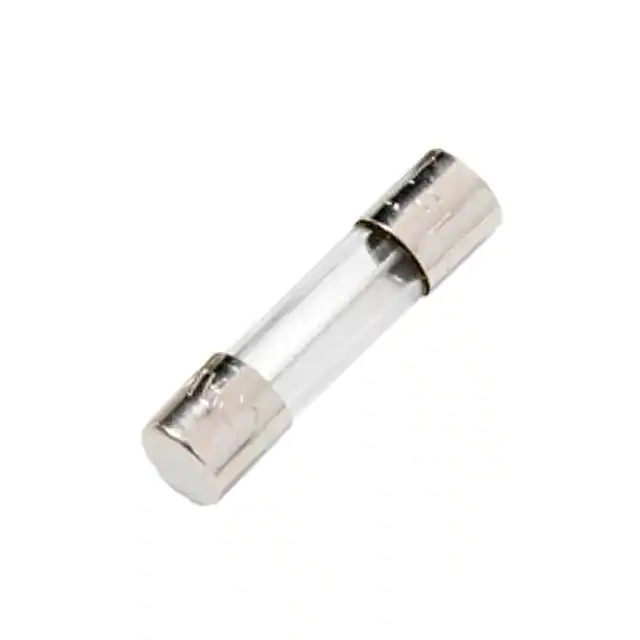

0235006.HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0235006.HXP

Part No 0235006.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 6A 125VAC 5X20MM / 6 A 125 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Datasheet
0235006.HXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 235
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 6 A
Voltage Rating - AC 125 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 10kA
Melting I²t 47.325
Approval Agency CE, CSA, KC, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0148 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361308-0235006.HXP
Ultra Librarian 3D Model Ultra Librarian 0235006.HXP CAD Model

Description

The 235 fuse is a high-quality circuit protection component from Littelfuse Inc. designed for various electronic applications.

  • Current Rating: 6A
  • Voltage Rating: 125V AC
  • Fuse Type: Cartridge
  • Size: 0.205" diameter x 0.787" L (5.20mm x 20.00mm)
  • Response Time: Fast Blow
  • Breaking Capacity: 10kA @ rated voltage
  • DC Cold Resistance: 0.0148 Ohms
  • REACH: Compliant
  • ECCN: EAR99
  • Approvals: CE, CSA, KC, PSE, and UL
  • Product Status: Active
