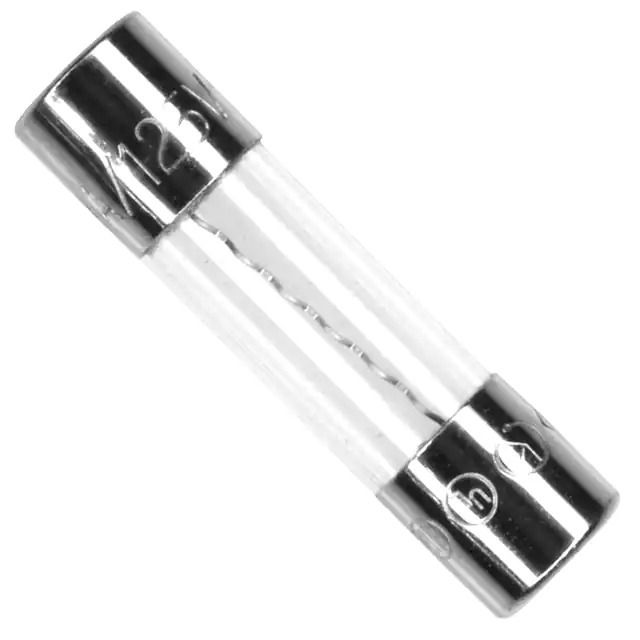

0233001.MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0233001.MXP

Part No 0233001.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 1A 125VAC 5X20MM / 1 A 125 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 233
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1 A
Voltage Rating - AC 125 V
Response Time Medium Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 10kA
Melting I²t 1.975
Approval Agency CE, CSA, KC, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.175 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361362-0233001.MXP
Ultra Librarian 3D Model Ultra Librarian 0233001.MXP CAD Model

Description

The Littelfuse Inc. 233 series fuse is a cartridge glass fuse designed for circuit protection. Littelfuse Inc.

  • Voltage Rating: 125V AC
  • Current Rating: 1A
  • Response Time: Medium Blow
  • Breaking Capacity: 10kA @ the rated voltage
  • Size: 5mm x 20mm
  • Mounting: Holder required
  • Approvals: CE, CSA, KC, PSE, and UL
  • DC Cold Resistance: 0.175 Ohms
