Same model may have multiple batches, images only for reference.

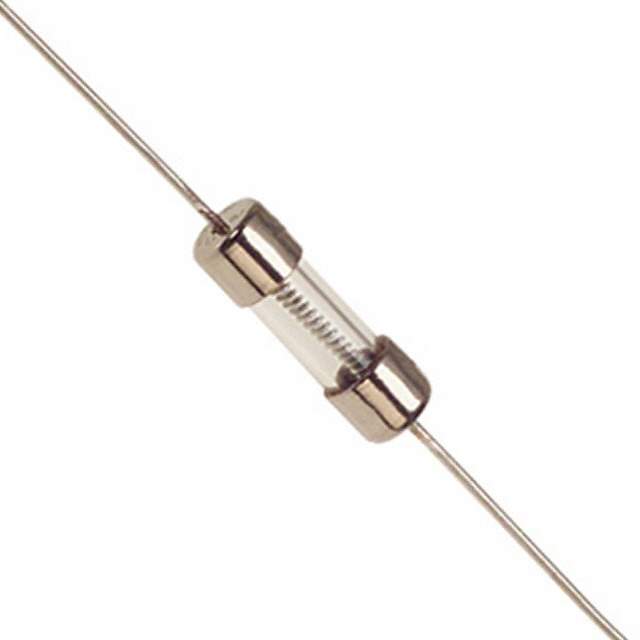

023002.5MXP Real Image
Same model may have multiple batches, images only for reference.

023002.5MXP

Part No 023002.5MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse | FUSE GLASS 2.5A 250VAC 125VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Glass
Current Rating (Amps) 2.5A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Slow Blow
Manufacturer Package Cartridge, Non-Standard (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 35A AC, 10kA DC
Melting I2t 50
Approvals CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.0502 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120545-023002.5MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 023002.5MXP CAD Model

Description

The 023002.5MXP is a glass cartridge fuse from Littelfuse Inc.

  • Manufacturer: Littelfuse Inc.
  • Fuse Type: Glass Cartridge Fuse
  • Response Time: Slow-Blow
  • Voltage Rating: 250VAC, 125VDC
  • Current Rating: 2.5A
  • Breaking Capacity @ Rated Voltage: 35A AC, 10kA DC
  • Approvals: CE, CSA, PSE, UL
  • DC Cold Resistance: 0.0502 Ohms
  • Dimensions: 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
  • Temperature Range: -55°C to 125°C
  • Packaging: Bulk
