Same model may have multiple batches, images only for reference.

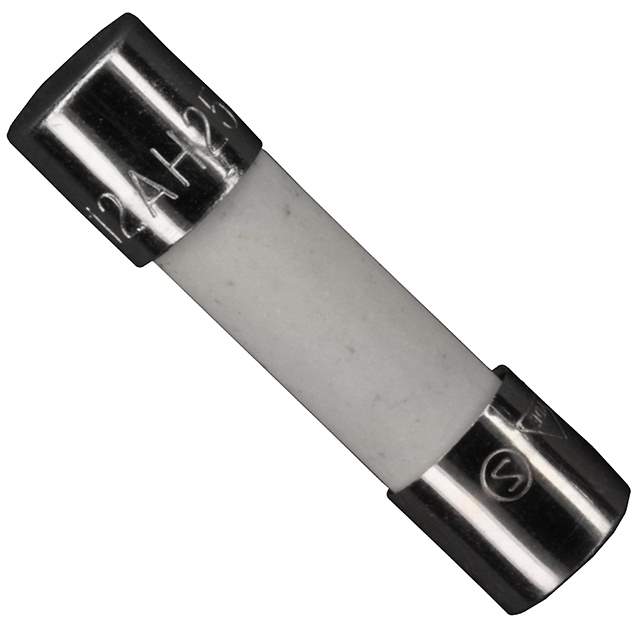

02153.15MXP Real Image
Same model may have multiple batches, images only for reference.

02153.15MXP

Part No 02153.15MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 3.15A 250VAC 5X20MM
Datasheet
02153.15MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Fuse Type Cartridge, Ceramic
Current Rating 3.15A
Voltage Rating - AC 250V
Response Time Slow
Mounting Clip / Holder
Breaking Capacity @ Rated Voltage 1.5kA
Nominal Melting - I2t 43.255
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.0283 Ohm
Win Source Part Number 1000041-02153.15MXP
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 02153.15MXP CAD Model

Description

The Littelfuse Inc. 3.15A ceramic cartridge fuse is a slow response fuse with a breaking capacity of 1.5kA @ rated voltage.

  • Current: 3.15A
  • Response: Slow
  • Breaking Capacity: 1.5kA @ rated voltage
  • Voltage Rating: 250V AC
  • Operating Temperature Range: -55°C to 125°C
  • Mounting: Clip or Holder
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, and VDE
  • Nominal Cold Resistance: 0.0283 Ohm
  • Nominal Melting I2t: 43.255
  • Device Type: Circuit Protection
  • Suitable for: Use in electronics and electrical equipment
