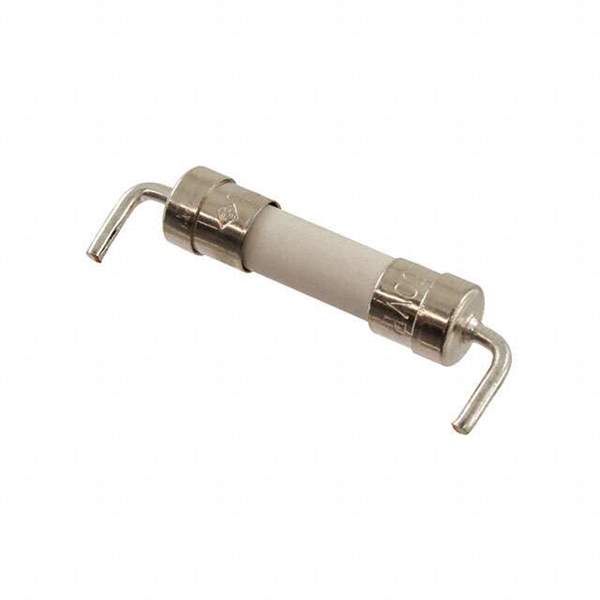

0215010.MXF11P Real Image
Same model may have multiple batches, images only for reference.

0215010.MXF11P

Part No 0215010.MXF11P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 10A 250VAC 5X20MM / 10 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole Radial Bend Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 215
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 10 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case Radial Bend Cylinder
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 333.565
Approval Agency CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0066 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 215010MXF11P,0215010MXF11P,-0215010.MXF11P,215010.MXF11P
Standard Package 1,000
Win Source Part Number 1033550-0215010.MXF11P
Ultra Librarian 3D Model Ultra Librarian 0215010.MXF11P CAD Model

Description

The 1033550-0215010.MXF11P is a slow-blow ceramic cartridge fuse from Littelfuse Inc.

  • Voltage Rating: 250V AC
  • Current Rating: 10A
  • Breaking Capacity @ Rated Voltage: 1.5kA
  • DC Cold Resistance: 0.0066 Ohms
  • Package/Case Style: Radial Bend Cylinder
  • Mounting Type: Through-Hole
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Packaging: Bulk
  • Standard Package: 1,000
  • Approvals: CE, CSA, KC, PSE, SEMKO, UL, and VDE
