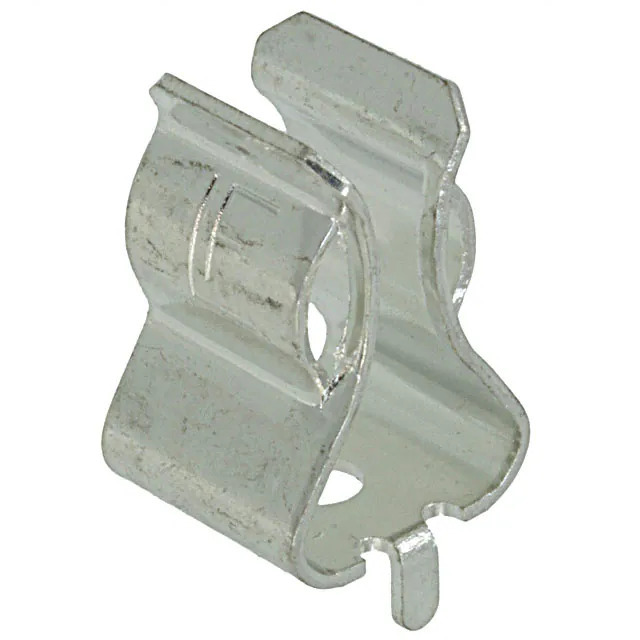

01250003H Littelfuse Inc.
Same model may have multiple batches, images only for reference.

01250003H

Part No 01250003H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 250V 30A PCB / Fuse Clip 30 A 250V 1 Circuit Cartridge Through Hole
Datasheet
01250003H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 125
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.394" Dia (10mm)
Current Rating (Amps) 30 A
For Use With/Related Products 13/32" Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage 250V
Orientation Horizontal
Termination Style PC Pin
Contact Material Beryllium Copper
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361489-01250003H
Ultra Librarian 3D Model Ultra Librarian 01250003H CAD Model

Description

The 1361489-01250003H is a fuse holder designed for use with 13/32" diameter fuses. Manufactured by Littelfuse Inc.

  • Series: 125
  • Mounting Type: Through Hole
  • Current Rating: 30A
  • Voltage Rating: 250V
  • Termination Style: PC Pin
  • Contact Finish: Tin
  • Contact Material: Beryllium Copper
  • Fuse Size: 13/32" Diameter
  • Fuse Holder Type: Clip
  • Packaging: Bulk
