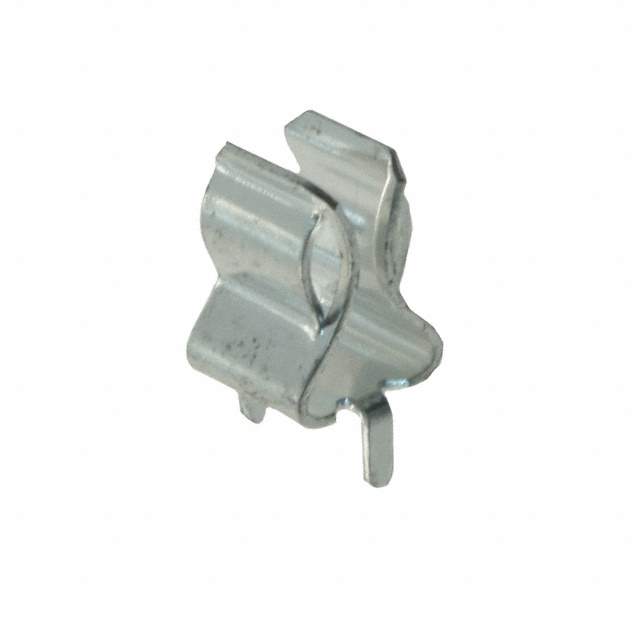

01220083Z Real Image
Same model may have multiple batches, images only for reference.

01220083Z

Part No 01220083Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 250V 30A PCB / Fuse Blocks and Clips - For 3AG Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Clip
Fuse Type Cartridge
For Use With/Related Products 1/4" Dia
Fuse Size 1/4" Dia (6.4mm)
Number of Circuits 1
Voltage 250V
Current Rating (Amps) 30A
Mounting Style Through Hole
Orientation Horizontal
Termination Style PC Pin
Contact Material Beryllium Copper
Contact Finish Silver
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805465-01220083Z
Ultra Librarian 3D Model Ultra Librarian 01220083Z CAD Model

Description

The Littelfuse Inc. 805465-01220083Z cartridge fuse holder clip from Littelfuse Inc..

  • Fuse Diameter: 1/4"
  • Mounting Style: Through-Hole
  • Orientation: Horizontal
  • Contact Finish: Silver
  • Contact Material: Beryllium Copper
  • Circuit: Single
  • Voltage Rating: 250V
  • Current Rating: 30A
