The STPR1640CT is a Turbo RECTIFIER manufactured by Lite-On Inc. Turbo rectifiers offer a faster reverse recovery time compared to standard fast recovery rectifiers, allowing for higher efficiency in switching applications. The 'CT' suffix usually indicates a center-tap configuration.

Applications:

• Switching Mode Power Supplies (SMPS)
• Power Factor Correction (PFC) circuits
• High-frequency inverters
• Freewheeling diodes in inductive loads
• DC-DC converters

Features:

• Fast reverse recovery time: Minimizes switching losses and reduces noise.
• Low forward voltage drop: Improves efficiency and reduces heat generation.
• High surge current capability: Provides protection against transient overloads.
• Center-tap configuration: Simplifies circuit design for certain applications.
• High reliability: Ensures stable performance in demanding applications.

Benefits:

• Improved efficiency in power supplies: Reduces energy waste and heat.
• Reduced switching noise: Minimizes electromagnetic interference (EMI).
• Enhanced system reliability: Protects against voltage spikes and overcurrent.
• Simplified circuit design: Reduces component count and assembly costs.
• Stable performance in harsh environments: Provides reliable operation in demanding conditions.

Additional Details:

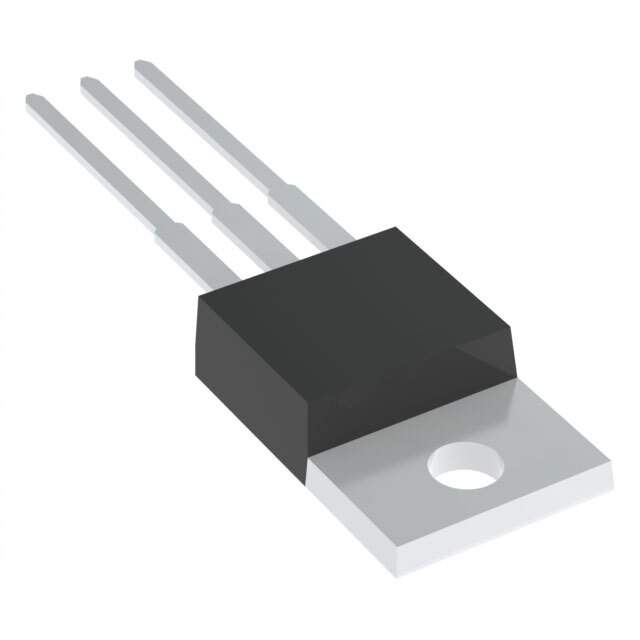

The STPR1640CT likely has a forward current rating of 16A (total for both diodes) and a reverse voltage rating of 400V, as the '16' and '40' in the part number often indicate these parameters. Turbo rectifiers are characterized by their fast reverse recovery time, which is the time it takes for the diode to switch from a conducting state to a blocking state. This rapid switching action minimizes losses during switching transitions, leading to higher efficiency. The low forward voltage drop contributes further to improved efficiency by reducing power dissipation during conduction. The center-tap configuration simplifies the design of full-wave rectifiers and other circuits where a common cathode connection is needed. The device is typically available in a TO-220 or similar package. Detailed specifications, including recovery time, forward voltage drop, reverse leakage current, and thermal resistance, can be found in the device datasheet.
