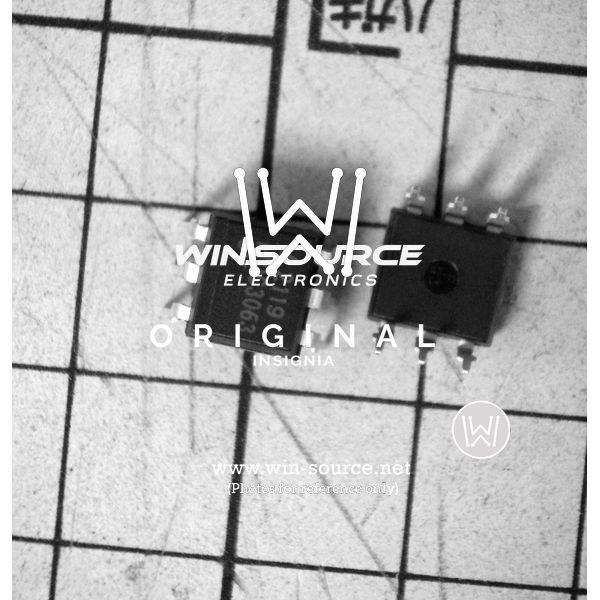

MOC3063S Real Image MOC3063S real image3540
Same model may have multiple batches, images only for reference.
MOC3063S Real Image MOC3063S real image3540
MOC3063S Real Image MOC3063S real image3540
Same model may have multiple batches, images only for reference.

MOC3063S

Part No MOC3063S
Manufacturer Lite-On Inc.
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lite-On Inc.
Standard Package 65
Category Isolators
Family Optoisolators - Triac SCR Output
Packaging Tube
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/µs
Current - LED Trigger (Ift) (Max) 5mA
Current - Hold (Ih) 400µA (Typ)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style SMD/SMT
Package 6-SMD Gull Wing
Manufacturer Device Package 6-SMD
Approvals CSA FIMKO UL
Catalog MOC3063-V Series
Win Source Part Number 059303-MOC3063S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MOC3063S CAD Model

Description

The Lite-On Inc. optoisolator is an electronic component with the Win Source part number 059303-MOC3063S.

  • Packaging: Tube
  • Operating Temperature: -40°C to 100°C
  • Package: 6-SMD gull wing
  • Manufacturer Device Package: 6-SMD
  • Approvals: CSA FIMKO UL
  • Output Type: Triac
  • Maximum DC Forward Current: 50mA
  • Voltage-Forward: 1.2V
  • Voltage-Off State: 600V
  • Number of Channels: 1
  • Voltage-Isolation: 5000Vrms
  • Current-Hold: 400μA (Typ)
  • Zero-Crossing Circuit: Yes
  • Minimum Static dV/dt: 1kV/μs
  • Maximum Current LED Trigger: 5mA
  • Supply and Demand Status: balance
