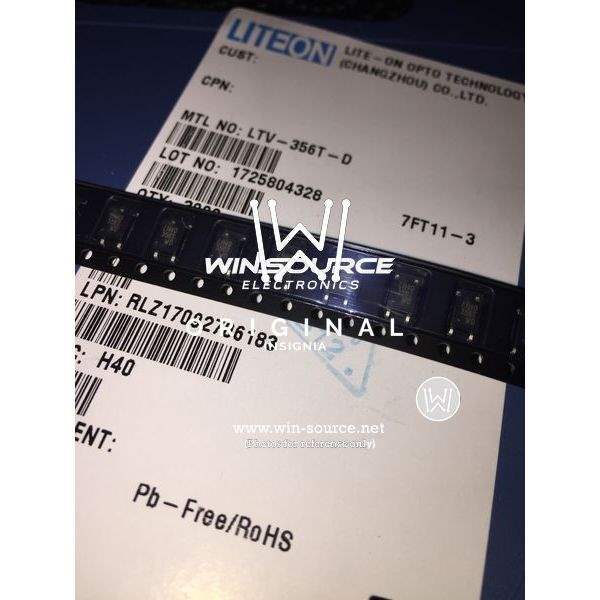

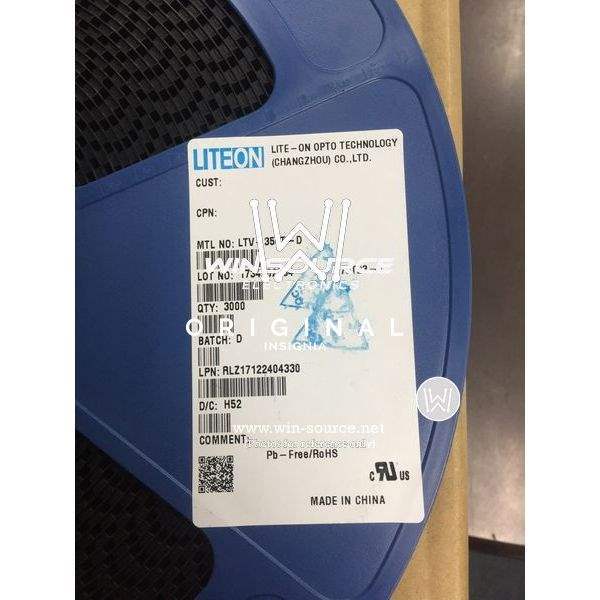

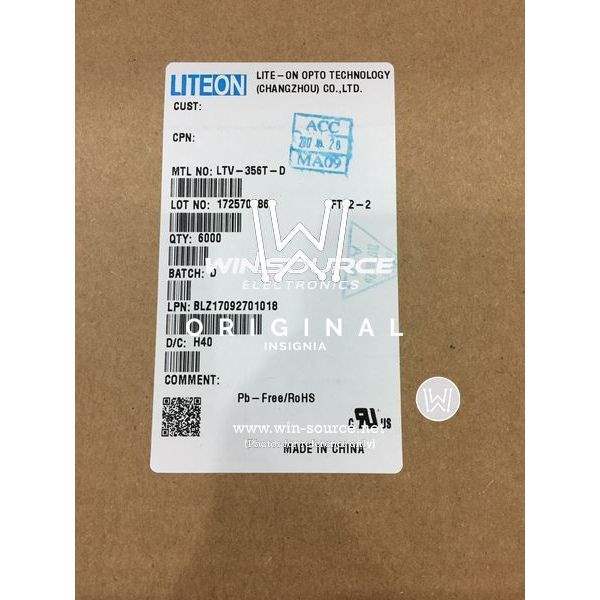

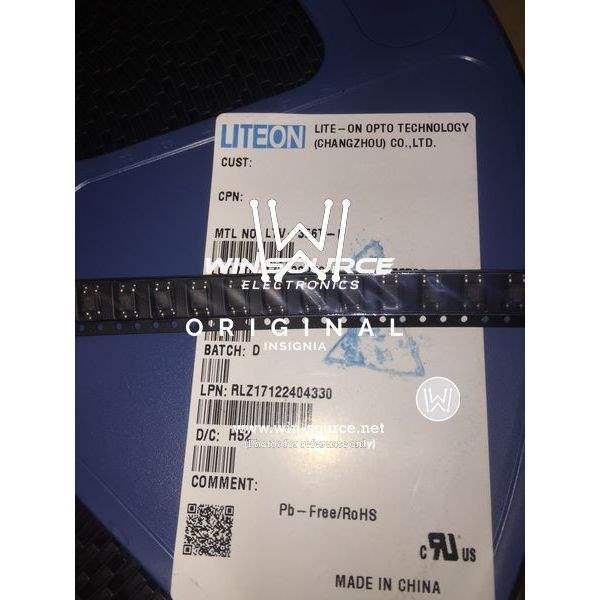

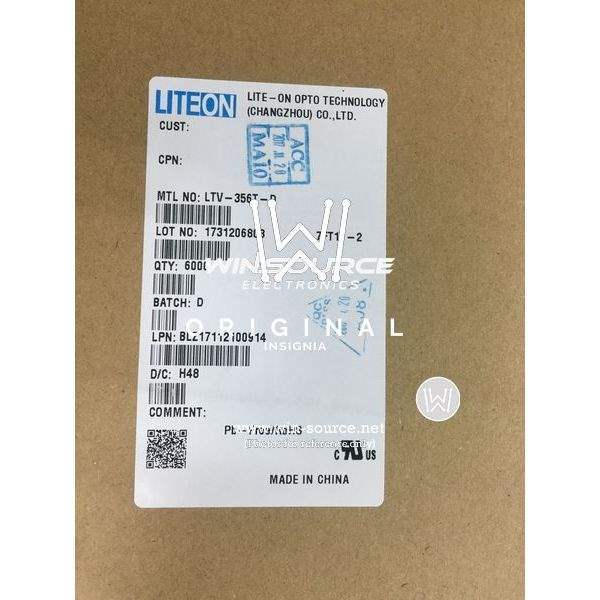

LTV-356T-D Lite-On Inc. LTV-356T-D Real Image LTV-356T-D label picture 2 LTV-356T-D label picture 3 LTV-356T-D label picture 4 LTV-356T-D real image LTV-356T-D real image 2
Same model may have multiple batches, images only for reference.
LTV-356T-D Lite-On Inc. LTV-356T-D Real Image LTV-356T-D label picture 2 LTV-356T-D label picture 3 LTV-356T-D label picture 4 LTV-356T-D real image LTV-356T-D real image 2
LTV-356T-D Lite-On Inc. LTV-356T-D Real Image LTV-356T-D label picture 2 LTV-356T-D label picture 3 LTV-356T-D label picture 4 LTV-356T-D real image LTV-356T-D real image 2
Same model may have multiple batches, images only for reference.

LTV-356T-D

Part No LTV-356T-D
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCPL 1 CH TRAN OUT SMT / Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Lite-On Inc.
Series LTV-356T
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SOP
Base Product Number LTV-356
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 198525-LTV-356T-D
Ultra Librarian 3D Model Ultra Librarian LTV-356T-D CAD Model

Description

The 198525-LTV-356T-D is a transistor output optoisolator designed for use in electronic circuits.

  • Isolation Voltage: 3750Vrms
  • Current Transfer Ratio: 50% at 5mA
  • Voltage Output: 80V
  • Maximum Vce Saturation: 200mV
  • Package: 4-SMD, Gull Wing
  • Operating Temperature Range: -55°C to 110°C
  • Manufacturer: Lite-On Inc.
  • Series: LTV-356T

It provides excellent protection against voltage spikes and noise, ensuring reliable signal transmission and suitable for harsh environments. It is an excellent choice for applications requiring transistor output optoisolators.
