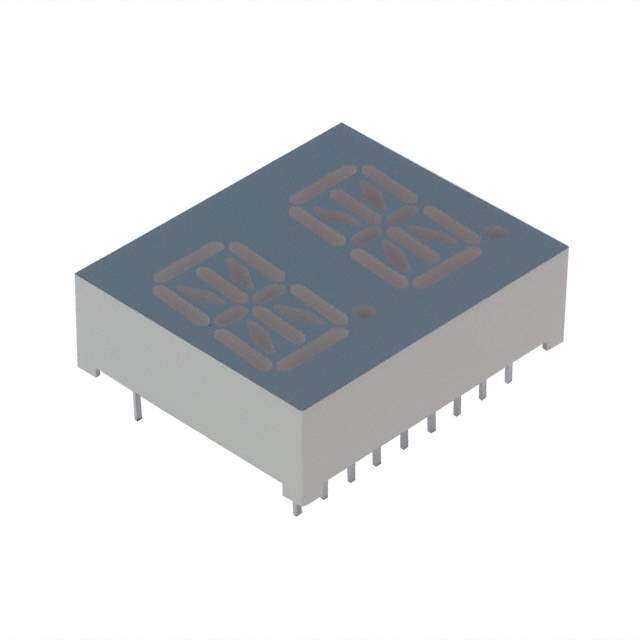

LTP-3784G Real Image
Same model may have multiple batches, images only for reference.

LTP-3784G

Part No LTP-3784G
Manufacturer Lite-On Inc.
Catalog Display Modules - LED Character and Numeric
Description DISP 14SEG 0.54" DBL GRN 18DIP  /  Display Modules - LED Character and Numeric Green 14-Segment, Alphanumeric 2 Character Common Cathode 2.1V 20mA 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) 18-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Lite-On Inc.
Package Tube
Number of Characters 2
Dimension 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm)
Digit/Alpha Size 0.54" (13.72mm)
Display Type 14-Segment, Alphanumeric
Common Pin Common Cathode
Color Green
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 2.3mcd
Wavelength - Peak 565nm
Power Dissipation (Max) 75mW
Package / Case 18-DIP
Base Product Number LTP-3784
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 160-1012,T1012,LT1012,LTP3784G
Standard Package 20
Win Source Part Number 1072821-LTP-3784G
Ultra Librarian 3D Model Ultra Librarian LTP-3784G CAD Model

Description

The LTP-3784G is a green LED character and numeric display module that is designed for electronic systems.

  • Package: Tube
  • Standard Package: 20
  • HTSUS: 8541.41.0000
  • Alternative Parts: LTC-2721G, LTC-4727G, LTS-3403LG, LDD-C512RI, LDS-F3902RI, DC56-11GWALTP3784G
