Same model may have multiple batches, images only for reference.

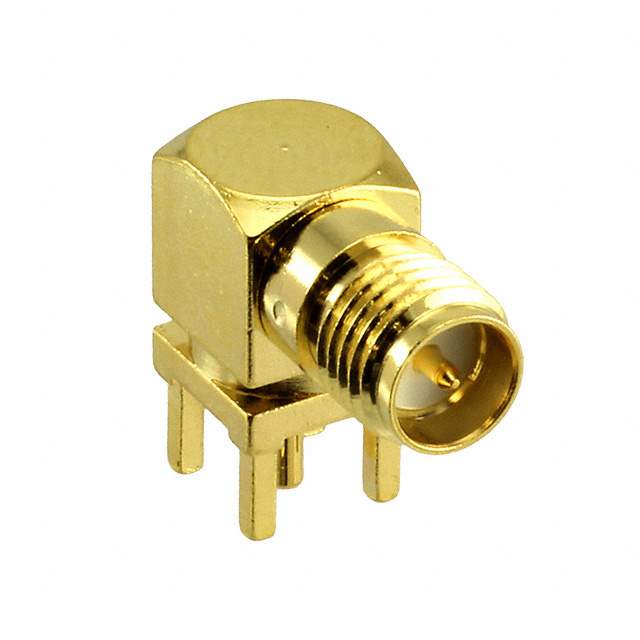

CONREVSMA002-G Real Image
Same model may have multiple batches, images only for reference.

CONREVSMA002-G

Part No CONREVSMA002-G
Manufacturer Linx Technologies Inc.
Catalog Coaxial Connectors (RF)
Description CONN RP-SMA RCPT R/A 50 OHM PCB  /  RP-SMA Connector Receptacle, Male Pin 50Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Linx Technologies Inc.
Package Bulk
Connector Style RP-SMA
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number CONREVSMA002
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 100
Win Source Part Number 1029884-CONREVSMA002-G
Ultra Librarian 3D Model Ultra Librarian CONREVSMA002-G CAD Model

Description

The CONREVSMA002-G is a coaxial connector manufactured by Linx Technologies Inc.

  • Connector Type: receptacle, male pin connector
  • Fastening Type: threaded
  • Contact Termination: solder
  • Impedance: 50-ohm
  • Maximum Frequency: 12.4 gigahertz (GHz)
  • Mounting Type: through-hole, right-angle
  • Temperature Range: -65°C to 165°C
  • Housing Color: gold
  • Body Finish: gold
  • Center Contact Material: beryllium copper
  • Center Contact Plating: gold
  • Dielectric Material: polytetrafluoroethylene (PTFE)
