Product Overview: LTM4606EY#PBF

The LTM4606EY#PBF is a high-efficiency, EN55022 Class B certified, 6A step-down µModule® (micromodule) regulator from Linear Technology. This comprehensive power management IC integrates a DC/DC controller, power switches, inductor, and all support components into a compact, surface-mount package. Designed to be user-friendly, it significantly simplifies the design of high-performance power systems, making it an ideal solution for a wide range of applications, including telecommunications, networking, industrial, and aerospace systems.

Key Features

• High Efficiency: The LTM4606EY#PBF operates with a high level of efficiency, which reduces power loss and improves system performance.
• Versatile Input Voltage Range: It supports a wide input voltage range from 4.5V to 28V, making it suitable for a variety of supply voltages.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5V, which allows for a high degree of flexibility in different applications.
• High Output Current: Capable of delivering up to 6A of continuous output current, it meets the needs of high-power applications.
• Integrated Components: With the inclusion of an inductor, power switches, and other necessary components, the LTM4606EY#PBF simplifies the design and reduces external component count.

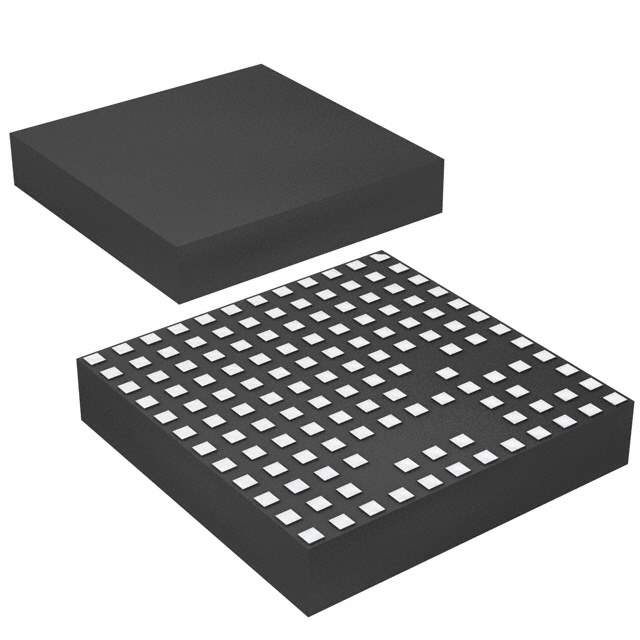

• Compact Design: The µModule regulator comes in a small footprint (15mm x 15mm x 2.82mm LGA package), which is ideal for space-constrained applications.
• Thermal Performance: It features excellent thermal performance due to its over-molded construction, which enhances heat dissipation.
• Protection Features: The device includes overvoltage, overcurrent, and over-temperature protection for increased reliability.

Applications

The LTM4606EY#PBF is versatile enough to be used in a multitude of applications that require a compact, efficient, and reliable power supply solution. Its design is particularly well-suited for:

• Telecommunications infrastructure
• Networking equipment such as routers and switches
• Industrial systems and controls
• Aerospace and defense electronics
• High-density distributed power systems

With its robust feature set and integrated design, the LTM4606EY#PBF from Linear Technology stands out as a powerful and efficient solution for modern electronic power supply requirements.
