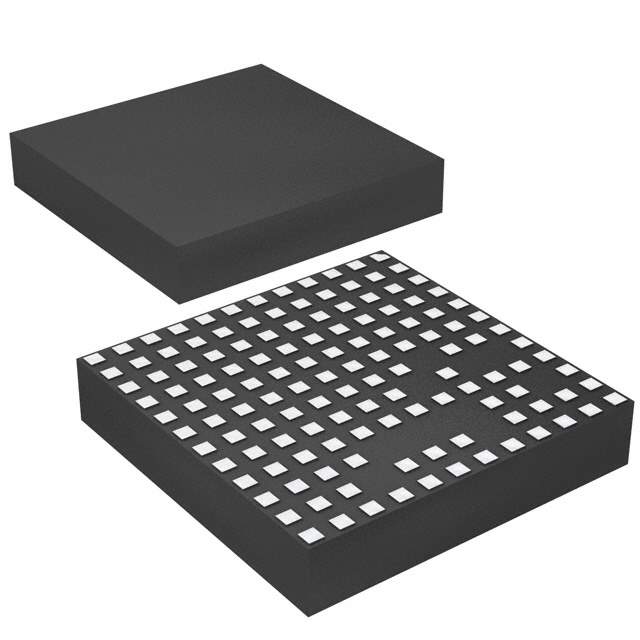

Product Overview: LTM4601AHVMPV#PBF from Linear Technology

The LTM4601AHVMPV#PBF is a high-efficiency, switch-mode buck-boost power module designed by Linear Technology, a leader in the field of analog integrated circuits and power management solutions. This innovative product encapsulates a high-performance DC/DC converter within a compact and robust package, making it an ideal choice for a wide range of applications requiring efficient power conversion.

Key Features

• Wide Input Voltage Range: The device operates from an input voltage range of 4.5V to 20V, accommodating a variety of power sources.
• Adjustable Output Voltage: It provides an adjustable output voltage from 0.8V to 5.5V, making it versatile for different applications.
• High Output Current: Capable of delivering up to 10A of continuous output current, it meets the needs of power-hungry circuits.
• High Efficiency: With an efficiency of up to 92%, the module ensures minimal power loss and heat generation.
• Compact Design: The LTM4601AHVMPV#PBF comes in a surface-mount package that is easy to integrate into space-constrained designs.
• Integrated Components: It includes onboard switching controllers, power switches, inductors, and support components, simplifying the design process.
• Protection Features: The module is equipped with overvoltage, overcurrent, and over-temperature protection, enhancing system reliability.

Applications

The LTM4601AHVMPV#PBF is suitable for a variety of applications, including but not limited to:

• Telecommunications infrastructure
• Industrial equipment
• Networking equipment
• Automotive systems
• Medical devices

Quality and Reliability

Linear Technology is renowned for its commitment to quality, and the LTM4601AHVMPV#PBF is no exception. It is designed to meet stringent industry standards, ensuring long-term reliability and performance in demanding environments. Whether you are designing for critical communications systems or robust industrial applications, this power module is engineered to deliver consistent, reliable power.

Overall, the LTM4601AHVMPV#PBF is a testament to Linear Technology's expertise in power management, offering designers a highly efficient, compact, and reliable power solution.
