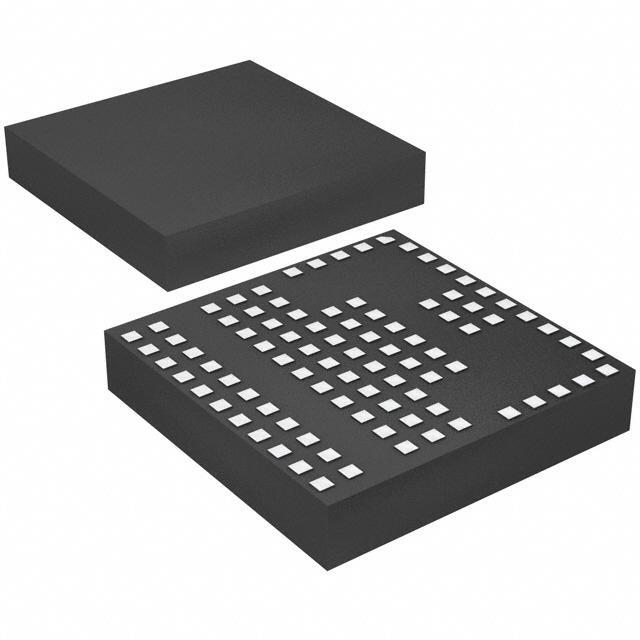

The LTM4600HVMPV#PBF is a complete high voltage, high-efficiency switch mode DC/DC power supply manufactured by Linear Technology. Encapsulated within a compact surface-mount package, this µModule (micro module) regulator integrates the inductor, MOSFETs, a DC/DC controller, and supporting components, streamlining the design process for power system engineers.

Key Features:

• Wide Input Voltage Range: The device is capable of operating from an input voltage range of 4.5V to 32V, making it versatile for a wide array of applications, including those that require a high input voltage.
• Adjustable Output Voltage: Its output voltage can be adjusted from 0.8V up to 15V, providing flexibility to power a variety of loads.
• High Efficiency: With its high-efficiency design, the LTM4600HVMPV#PBF minimizes power loss and heat generation, which is crucial for performance and reliability in tight spaces.
• Integrated Components: The integration of inductors, MOSFETs, and other components simplifies the design and reduces the PCB footprint, which is ideal for space-constrained applications.
• Thermal Performance: The product is designed to operate in a temperature range of -40°C to 125°C, ensuring reliable performance across various environmental conditions.
• Overcurrent Protection: It includes robust protection features such as overcurrent protection to safeguard the module and downstream components from damage due to excessive current.

Applications:

The LTM4600HVMPV#PBF is suitable for a wide range of applications, including but not limited to:

• Telecommunications Infrastructure
• Industrial Equipment
• Networking Equipment
• Automotive Systems
• Medical Devices
• High-Density Distributed Power Systems

With its robust set of features and high level of integration, the LTM4600HVMPV#PBF from Linear Technology simplifies power design challenges and accelerates time-to-market for a variety of high-performance electronic products.
