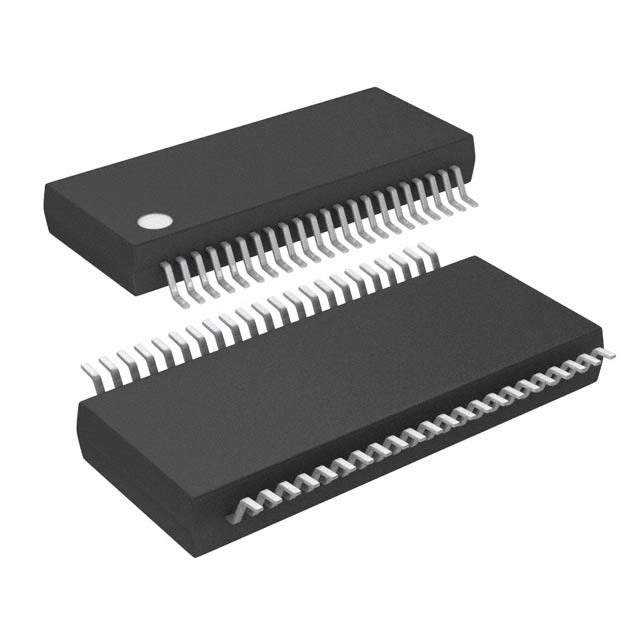

Linear Technology LTC6803HG-1#PBF Multicell Battery Monitor

The LTC6803HG-1#PBF is a high-performance, multicell battery stack monitor that significantly simplifies the task of monitoring the voltage of each individual cell in a battery pack of up to 12 series connected cells. Designed and manufactured by Linear Technology, now part of Analog Devices, this integrated circuit is specifically tailored for the precise needs of modern battery management systems in electric vehicles (EVs), hybrid electric vehicles (HEVs), and large-scale energy storage systems.

One of the standout features of the LTC6803HG-1#PBF is its ability to measure cell voltages with an impressive accuracy of ±0.25% over the entire temperature range. This precision ensures that the state of charge (SOC) and state of health (SOH) of each cell can be accurately determined, which is crucial for maintaining the performance and longevity of a battery pack.

The LTC6803HG-1#PBF is also designed for robustness and reliability. It includes built-in noise filtering and a high voltage process that allows the chip to function correctly even in the high voltage and noisy environments typical of battery stacks. This feature ensures that the LTC6803 can deliver accurate readings even under adverse conditions.

In terms of communication, the LTC6803HG-1#PBF uses an isoSPI interface for high-speed, RF-immune communication. This allows multiple LTC6803 devices to be daisy-chained together, enabling the monitoring of an extended number of cells with minimal wiring complexity. The isoSPI interface ensures reliable data transfer even in environments with high electrical interference.

Other features of this product include a reference voltage output that can be used for calibration or as a voltage reference for other components in the system, under-voltage and over-voltage detection for each cell, and a compact footprint that makes it suitable for space-constrained applications.

Overall, the LTC6803HG-1#PBF is a sophisticated solution for complex battery management tasks, providing accurate monitoring, high integration, and ease of use for engineers and designers working on the cutting edge of battery technology.
