LTC6091HUFE#PBF High Voltage Precision Operational Amplifier

The LTC6091HUFE#PBF is a high-performance operational amplifier (op-amp) designed and manufactured by Linear Technology, a company renowned for their innovative and robust power management and precision analog solutions. This particular op-amp is part of the LTC6091 series, which are known for their high voltage capabilities and precision signal processing.

Key Features:

• High Voltage Operation: The LTC6091HUFE#PBF can operate with a supply voltage range of up to 140V (70V for dual supplies), making it suitable for high voltage applications that require precise linear amplification.
• Wide Output Swing: It offers a wide output swing that approaches the supply rails, ensuring maximum dynamic range which is essential for many high voltage systems.
• Low Noise: With a low input noise density of 12nV/√Hz at 1kHz, this op-amp is ideal for sensitive applications where noise performance is critical.
• High Input Impedance: The high input impedance minimizes loading on the previous stage, which can be beneficial in buffered applications and precision current measurements.
• Stability: The LTC6091HUFE#PBF is stable with capacitive loads, making it versatile for various applications without the need for additional external compensation.

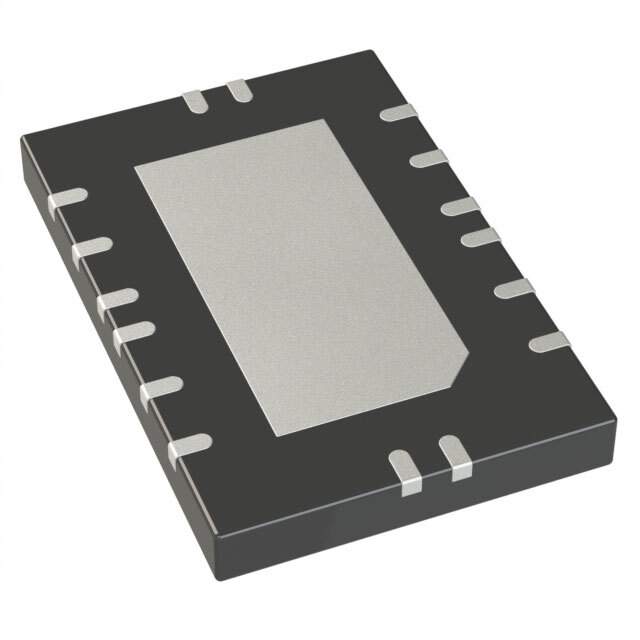

• Robust Packaging: Housed in a 16-lead plastic QFN package, the LTC6091HUFE#PBF is designed to handle challenging industrial environments with its robust packaging.

Applications:

The LTC6091HUFE#PBF's high voltage capability combined with precision makes it an excellent choice for a wide range of applications, including:

• High voltage instrumentation
• Piezoelectric transducer drivers
• Photodiode amplifier circuits
• Electrostatic transducers and sensors
• Medical applications such as defibrillators and MRI systems

With its combination of high voltage operation, precision, and robust design, the LTC6091HUFE#PBF is well-suited to meet the demands of advanced industrial and medical applications where performance and reliability are paramount. Whether you're designing a high-precision data acquisition system or a high-voltage driver, the LTC6091HUFE#PBF offers the quality and capabilities needed for success.
