The LTC485IS8#PBF is a low power differential bus/line transceiver designed by Linear Technology specifically for RS485 and RS422 applications. This device enables efficient communication in balanced transmission lines while maintaining a high level of signal integrity.

Key Features:

• Low Power Operation: The LTC485IS8#PBF is optimized for low power consumption, making it ideal for battery-powered and power-sensitive applications.
• Wide Supply Voltage Range: It operates from a single 5V supply, providing flexibility in various system designs.
• High Speed: Capable of transmitting data at speeds up to 2.5Mbps, this transceiver is suitable for high-speed data communication.
• Thermal Shutdown Protection: The device includes a thermal shutdown feature to protect against damage from excessive power dissipation.
• Fail-Safe Receiver: The receiver has a fail-safe feature that ensures a high output state if the inputs are left open or are shorted.
• Extended Temperature Range: The LTC485IS8#PBF is designed to operate over an industrial temperature range, making it robust for harsh environments.

Applications:

• Networked Industrial Control Systems
• Building Automation
• Factory Automation
• Remote Data Acquisition

Package and Quality:

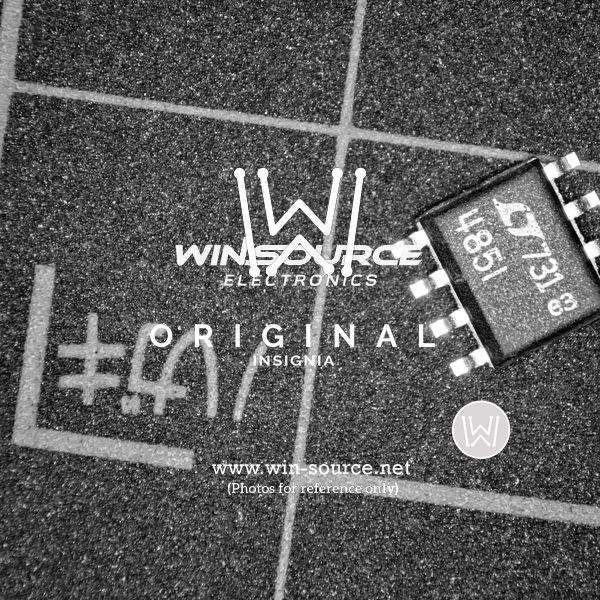

The LTC485IS8#PBF comes in an 8-lead SOIC package, which is compact and suitable for space-constrained applications. The product adheres to Linear Technology's high-quality standards, ensuring reliability and performance in critical communication systems.

Conclusion:

Whether you are designing an industrial control system or setting up a network for building automation, the LTC485IS8#PBF from Linear Technology offers a reliable and efficient solution for your RS485 or RS422 communication needs. Its low power consumption, high-speed data transfer capabilities, and robust design make it an excellent choice for a wide range of applications.
