Overview of LTC3706EGN#PBF

The LTC3706EGN#PBF is a high-performance, step-down switching regulator controller from Linear Technology, designed to manage power supply requirements in a wide range of electronic applications. This advanced controller is engineered to provide precise voltage regulation, exceptional power efficiency, and enhanced system reliability, making it an ideal choice for sophisticated power management solutions.

Key Features

• Wide Input Voltage Range: The LTC3706EGN#PBF operates over a broad input voltage range, accommodating various power sources and ensuring compatibility with diverse system architectures.
• High-Efficiency Operation: It utilizes a synchronous rectification topology, which significantly increases efficiency, especially at high load currents, by reducing power losses associated with diode drop.
• Precise Voltage Regulation: The device features a high-performance control loop with tight voltage regulation to maintain stable output, even under dynamic load conditions.
• Adjustable Switching Frequency: Users can set the switching frequency as per the requirements of the application, allowing for a balance between efficiency and component size.
• Robust Protection Features: It includes overvoltage, undervoltage, overcurrent, and over-temperature protections to safeguard the system against various fault conditions.
• Soft-Start Capability: The soft-start function limits inrush current during startup, contributing to system stability and longevity.

Applications

The LTC3706EGN#PBF's versatile nature makes it suitable for a range of applications, including but not limited to:

• Telecommunications infrastructure
• Networking equipment
• Industrial systems
• Automotive electronics
• Portable battery-powered devices

Package and Quality

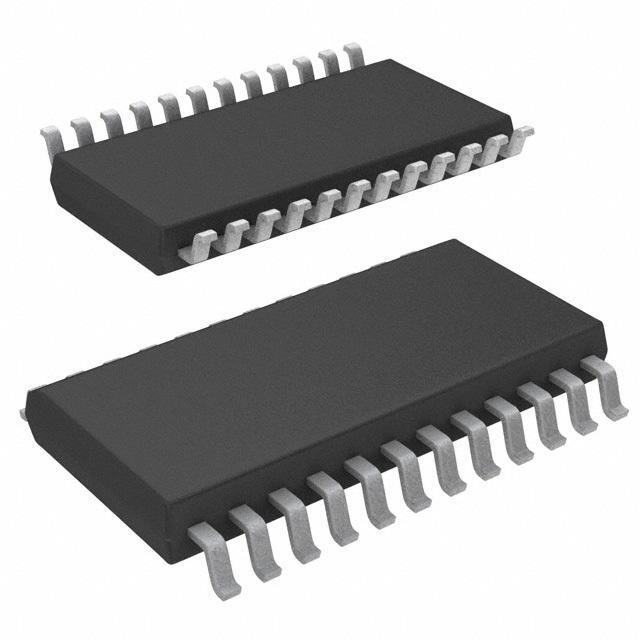

Encased in a compact 24-lead SSOP package, the LTC3706EGN#PBF offers a space-saving solution for modern electronic devices. It is also RoHS compliant, adhering to environmental standards and ensuring a reduced environmental impact. With Linear Technology's reputation for quality, this product promises reliability and performance for advanced power management applications.
